Westgate Mfg ULR COB LED Ribbon, 3W/Ft, CCT Selectable 2700–6500K, CRI90, 24VDC, 0-10V Dimming, White, ULR-IN-16F-HO-COB-WT

ROCK SKU: WES-ULR-IN-16F-HO-COB-WT
UPC: 845060085709
MFG Part #: ULR-IN-16F-HO-COB-WT

$193.78

$171.74

Spec Sheet Installation Guide

Estimated Lead Time: 0-2 weeks

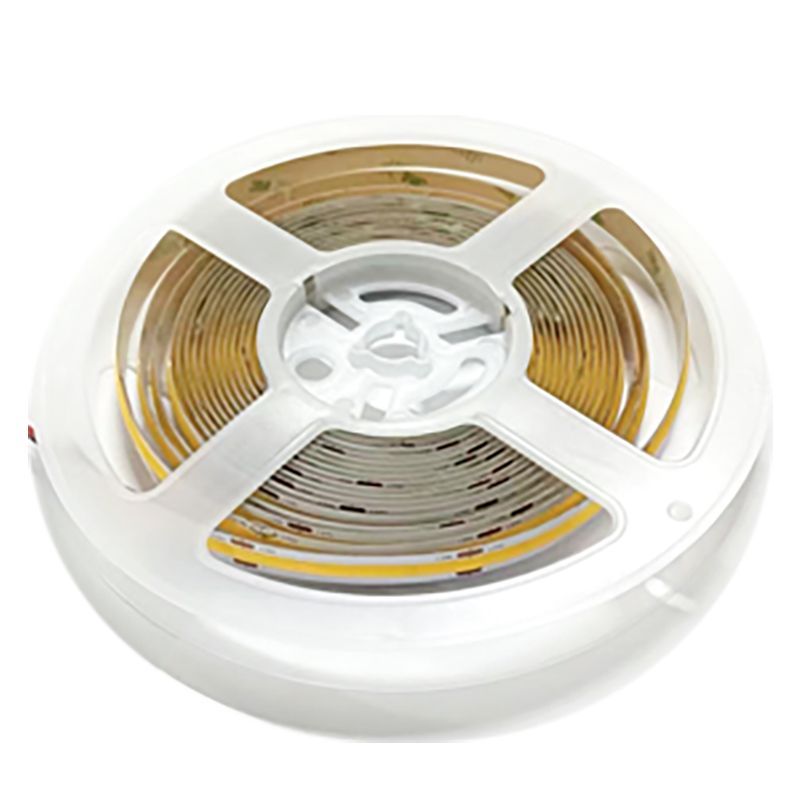

The Westgate Mfg ULR-IN-16F-HO-COB-WT is a UL-listed 3W/ft white-tuning FCOB LED ribbon utilizing Sanan chip-on-board technology, field-adjustable from 2700K to 6500K via included controller for interior cove and architectural applications on 24VDC systems. Delivering 340 lumens per foot with CRI 90+ and a 180° beam angle, it supports 0-10V, DALI, and PWM dimming protocols. Rated IP20 with a 50,000-hour lifespan and a 5-year warranty.

Watts	3W/Ft
Lumens	340 lm/Ft
Color Temperature	CCT Selectable (2700K–6500K)
CRI	90
Voltage	24VDC
Dimming	0–10V, DALI, PWM
IP Rating	IP20
Rated Life	50,000 hr
Finish	White
Listing	UL
