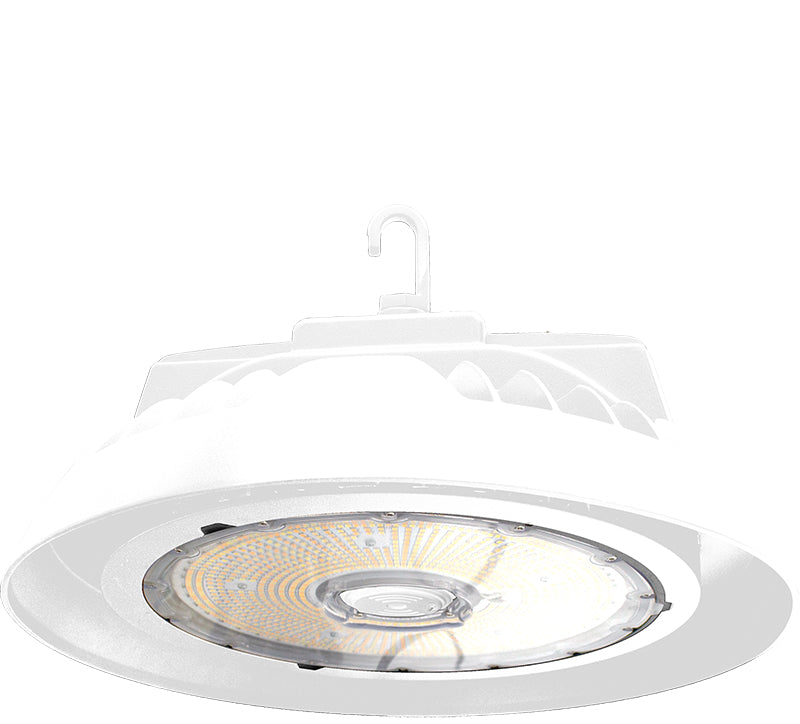

Westgate Mfg UHX UFO High Bay, 100/150/200/230W, CCT Selectable, 0-10V Dimmable, White, UHX-230W-MCTP-WH
- ROCK SKU: WES-UHX-230W-MCTP-WH
- UPC: 845060062946
- MFG Part #: UHX-230W-MCTP-WH
$395.78
$171.29
The Westgate Mfg UHX-230W-MCTP-WH is a wattage- and CCT-adjustable UFO high bay in white finish for warehouses, manufacturing facilities, and commercial spaces on 120–277V. Field-selectable wattage (100/150/200/230W) and CCT (3000K/4000K/5000K/5700K) deliver up to 125 lm/W, with 0–10V dimming and an IP65-rated aluminum housing. UL listed and DLC Premium qualified with a 50,000-hour rated life and a 5-year warranty. White finish.
| Watts | 100/150/200/230W (Field-Adjustable) |
| Lumens | 12,500–28,750 lm |
| Color Temperature | CCT Selectable (3000K/4000K/5000K/5700K) |
| CRI | >80 |
| Voltage | 120–277V |
| Dimming | 0–10V |
| Rated Life | 50,000 hrs |
| IP Rating | IP65 |
| Finish | White |
| Certifications | UL, DLC Premium, BUG Rating B4-U3-G2 |
