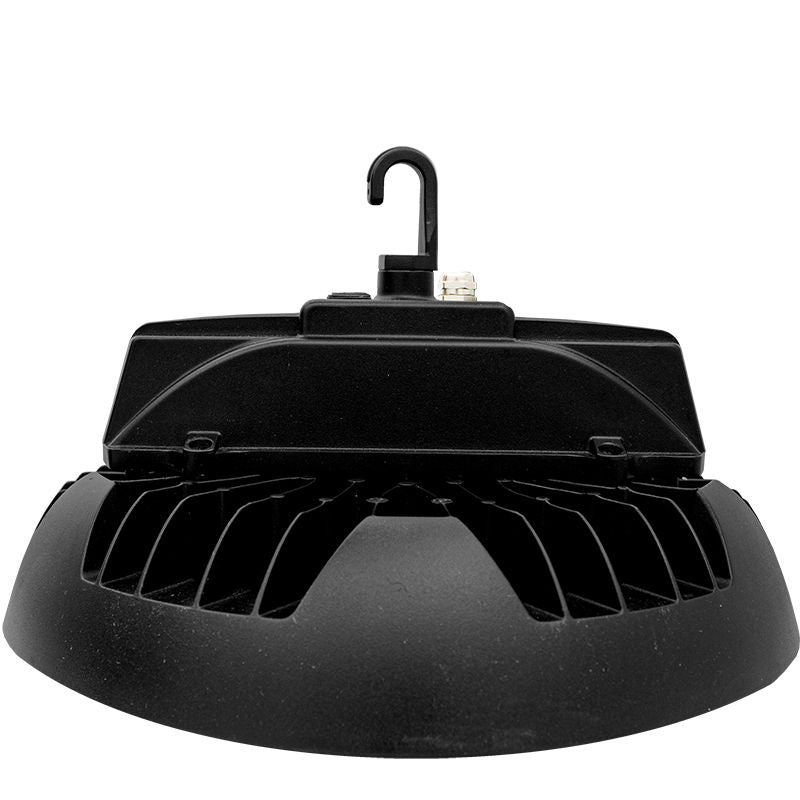

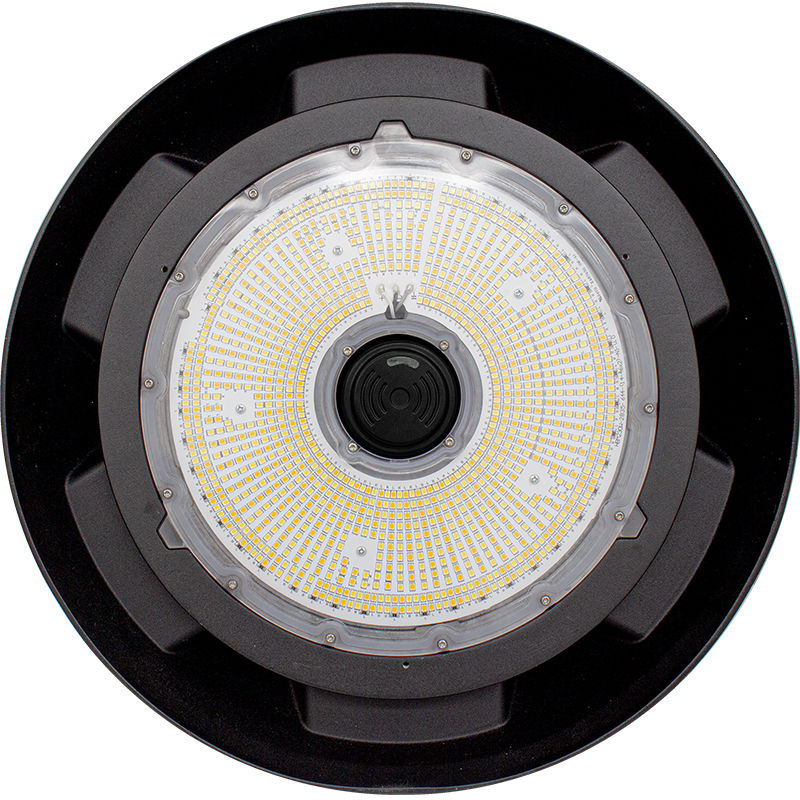

Westgate Mfg UHX UFO High Bay, 100/150/200/230W, CCT Selectable, 0-10V Dimmable, Black, UHX-230W-MCTP-SR
- ROCK SKU: WES-UHX-230W-MCTP-SR
- UPC: 845060042849
- MFG Part #: UHX-230W-MCTP-SR
$211.78
$187.74
The Westgate Mfg UHX-230W-MCTP-SR is a wattage- and CCT-selectable UFO high bay for warehouses, sports facilities, and industrial spaces on 120–277V. Four field-adjustable wattage settings (100/150/200/230W) and CCT options (3000K/4000K/5000K/5700K) with Lumileds 2835 LEDs deliver 130 lm/W, with 0–10V dimming and an IP65-rated aluminum housing. UL listed with a BUG rating of B4 U0 G3, 50,000-hour rated life, and a 5-year warranty. Black finish.
| Watts | 100/150/200/230W (Field-Adjustable) |
| Lumens | 13,000–29,900 lm |
| Color Temperature | CCT Selectable (3000K/4000K/5000K/5700K) |
| CRI | >80 |
| Voltage | 120–277V |
| Dimming | 0–10V |
| Rated Life | 50,000 hrs |
| IP Rating | IP65 |
| Finish | Black |
| Certifications | UL, BUG Rating B4-U0-G3 |
