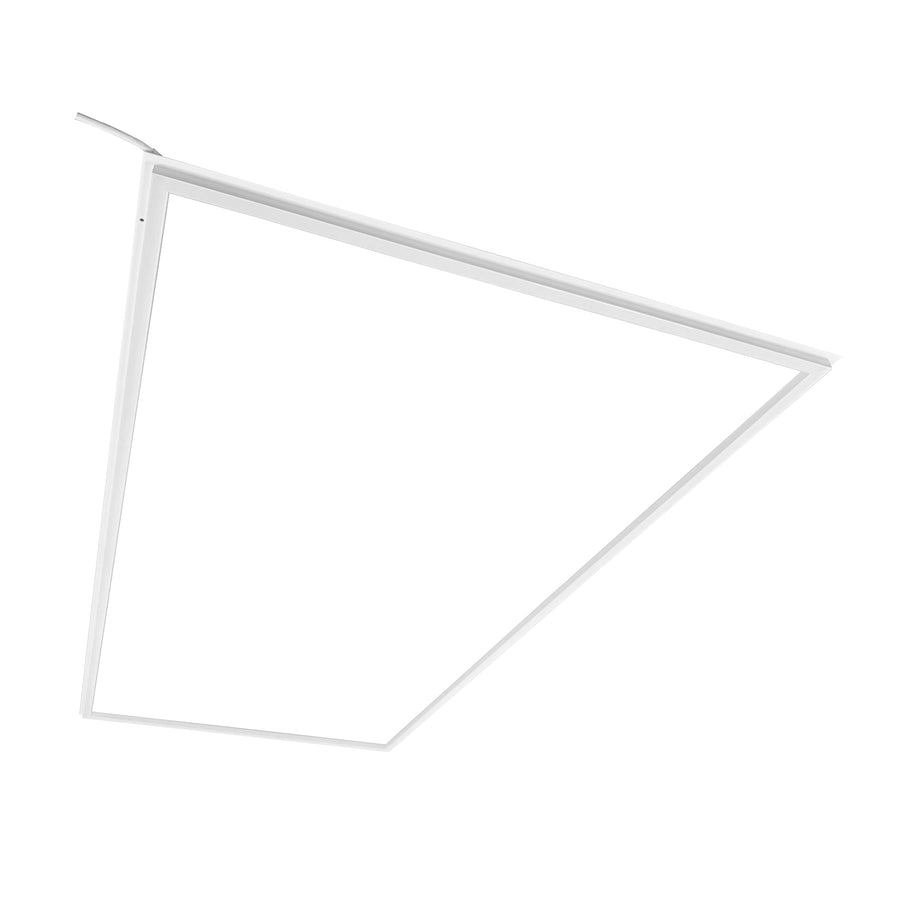

Westgate Mfg TGL 2X4 T-Bar Troffer, 35/45/54W, CCT Selectable, 0-10V, White, TGL-2X4-MCTP
- ROCK SKU: WES-TGL-2X4-MCTP
- UPC: 845060058437
- MFG Part #: TGL-2X4-MCTP
$122.78
$108.74
The Westgate Mfg TGL-2X4-MCTP is a 2×4 T-bar grid frame LED troffer designed for commercial office, retail, and institutional ceiling grid installations. Selectable wattage of 35/45/54W and field-adjustable CCT (3500K/4000K/5000K) deliver up to 150 lm/W with 0–10V dimming on 100–277VAC. UL listed for damp locations with a 50,000-hour rated life and a 5-year warranty.
| Watts | 35/45/54W (Field-Adjustable) |
| Lumens | 5,250 lm |
| Color Temperature | CCT Selectable (3500K/4000K/5000K) |
| Voltage | 100-277V |
| Dimming | 0-10V |
| CRI | >80 |
| Rated Life | 50,000 hours |
| IP Rating | Damp Location |
| Finish | White |
| Listings | UL |
