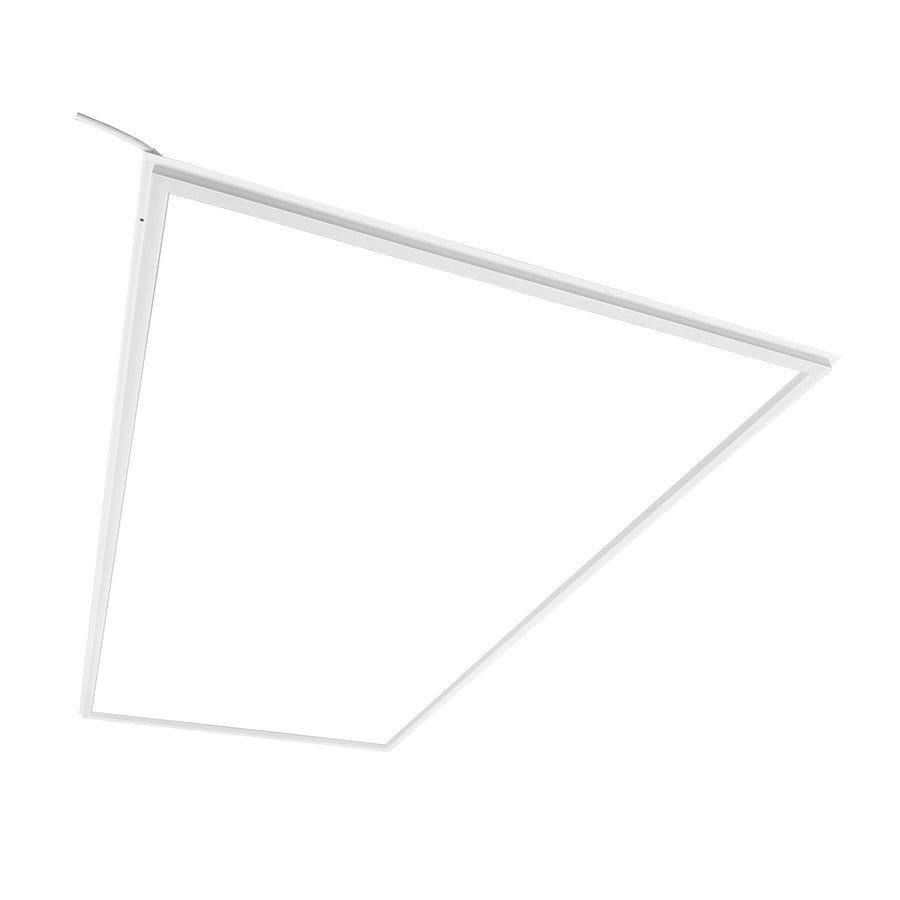

Westgate Mfg TGL-2X2 2X2 T-Bar Grid Frame Light, 27/35/40W, CCT Selectable, 0-10V, White, TGL-2X2-MCTP
- ROCK SKU: WES-TGL-2X2-MCTP
- UPC: 845060058420
- MFG Part #: TGL-2X2-MCTP
$87.78
$77.74
The Westgate Mfg TGL-2X2-MCTP is a 2×2 T-bar grid frame LED troffer for suspended ceiling commercial and institutional applications, offering selectable wattage of 27W, 35W, or 40W with CCT switchable between 3500K, 4000K, and 5000K at 150 lm/W efficacy. UL listed, 0–10V dimmable on 100–277VAC, CRI >80, and rated for damp locations with a 50,000-hour life and 5-year warranty.
| Watts | 27/35/40W (Field-Adjustable) |
| Lumens | 4,050–6,000 lm |
| Color Temperature | CCT Selectable (3500K/4000K/5000K) |
| CRI | >80 |
| Voltage | 100-277V |
| Dimming | 0-10V |
| Beam Angle | 120° |
| Rated Life | 50,000 hrs |
| IP Rating | Damp Location |
| Finish | White |
