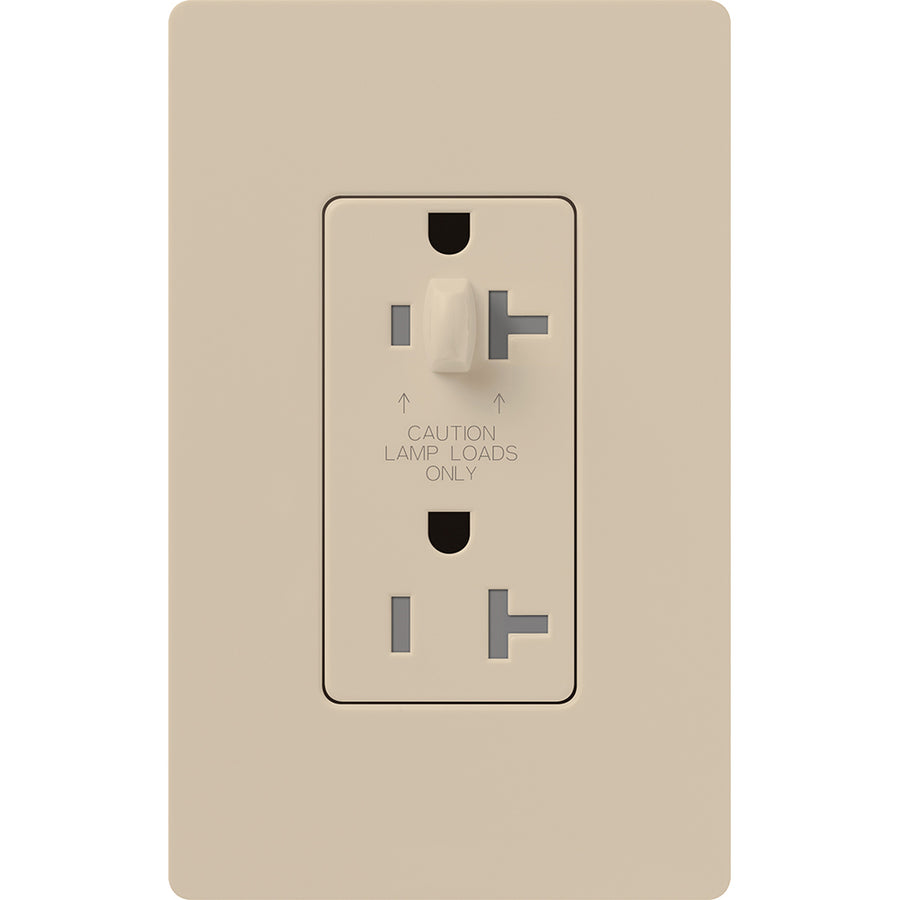

Lutron Claro 20A Half Dimming, Tamper Resistant Duplex Receptacle, Decorator-Style Outlet, Satin Finish, SCR-20-HDTR-TP, Taupe
- ROCK SKU: LUT-SCR-20-HDTR-TP
- UPC: 027557783293
- MFG Part #: SCR-20-HDTR-TP
$82.35
$51.48
Estimated Lead Time: 3-4 weeks
Claro
Features
- Satin
- half dimming
- tamper resistant receptacle
- 20A/125V in taupe
- Features on receptacle(s) for dimming use reject standard plugs
- Uses standard switched receptacle wiring (HDTR requires two separate live/hot feeds)
- Permanently installed internal tamper resistant shutter mechanism capable of resisting insertion of foreign elements into the device
- Specification grade construction
- Back wire installation capable
- Receptacle face compatible with NEMA designer and Nova T opening wallplates
- Plug may be used with standard receptacles and with new receptacles designed for dimming use
- Plug is compatible with 18 AWG (0.75 mm2) SPT-2 lamp cords
- Plug uses split-shell design for easy wiring and the ability to control cord exit direction
| Application | Lighting Control |
| Decorative Color | Taupe |
| Wire Size | 10 to 12 |
| Voltage Rating | 125 |
| Temperature Rating, Maximum | 104.000000000000000 |
| Type | Receptacle for half-dimming use |
| Standard | UL, CSA, NOM |
| Environmental Conditions | 0 to 90% humidity, non-condensing |
| Connection | Screw terminal |
| Mounting | Wallbox |
| NEMA Rating | 5-20R |
| Number of Wires | 3,4,5 |
| Amperage Rating | 20;20.0000 |
| Wattage | 2500;2500.0000 |
| Insulation | Plastic |
| Material Quality | Plastic/Metal |
