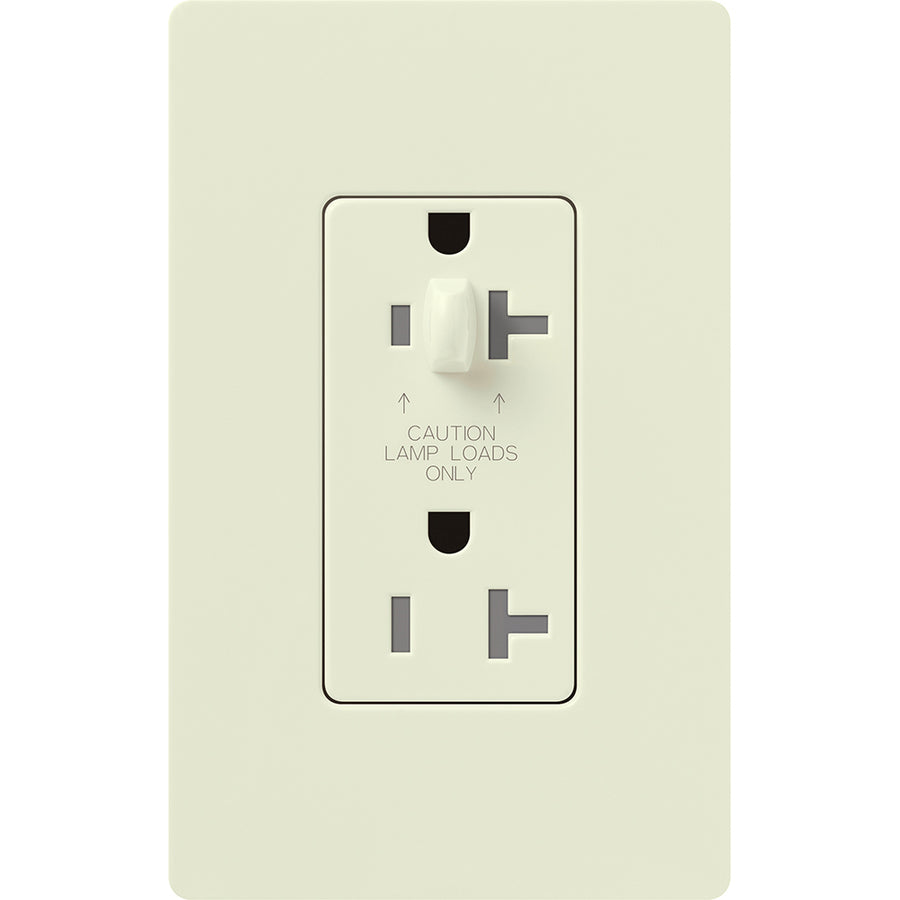

Lutron Claro 20A Half Dimming, Tamper Resistant Duplex Receptacle, Decorator-Style Outlet, Satin Finish, SCR-20-HDTR-BI, Biscuit
- ROCK SKU: LUT-SCR-20-HDTR-BI
- UPC: 027557782784
- MFG Part #: SCR-20-HDTR-BI
$40.67
Estimated Lead Time: 2-3 weeks
Product dimensions
-
Width:
2.3 IN
-
Height:
4.5 IN
-
Depth:
2.3 IN
-
Weight:
0.25 LBS
Claro
- Satin
- half dimming
- tamper resistant receptacle
- 20A/125V in biscuit
- Features on receptacle(s) for dimming use reject standard plugs
- Uses standard switched receptacle wiring (HDTR requires two separate live/hot feeds)
- Permanently installed internal tamper resistant shutter mechanism capable of resisting insertion of foreign elements into the device
- Specification grade construction
- Back wire installation capable
- Receptacle face compatible with NEMA designer and Nova T opening wallplates
- Plug may be used with standard receptacles and with new receptacles designed for dimming use
| Application | Lighting Control |
| Connection | Screw terminal |
| Decorative Color | Biscuit |
| Mounting | Wallbox |
| Environmental Conditions | 0 to 90% humidity, non-condensing |
| Voltage Rating | 125 |
| Type | Receptacle for half-dimming use |
| Standard | UL, CSA, NOM |
| Temperature Rating, Maximum | 104.000000000000000 |
| Number of Wires | 3,4,5 |
| NEMA Rating | 5-20R |
| Wire Size | 10 to 12 |
| Amperage Rating | 20;20.0000 |
| Material Quality | Plastic/Metal |
| Insulation | Plastic |
| Wattage | 2500;2500.0000 |
Product dimensions
-
Width:
2.3 IN
-
Height:
4.5 IN
-
Depth:
2.3 IN
-
Weight:
0.25 LBS
