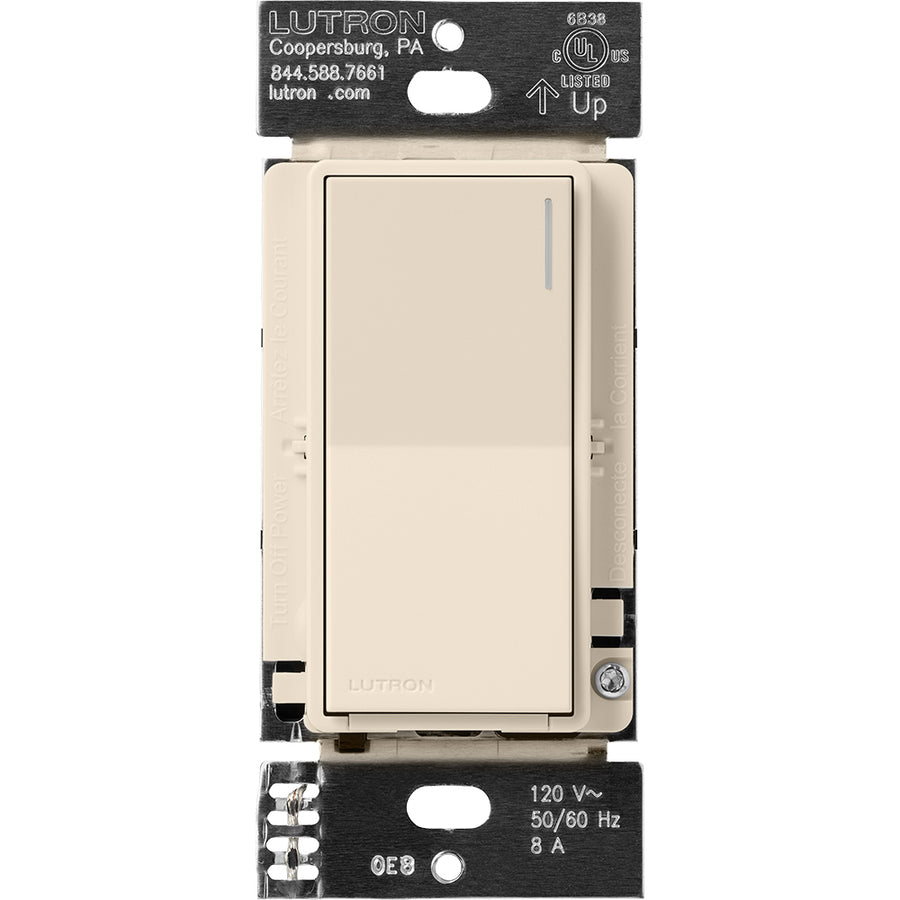

Lutron Sunnata RF Neutral Switch for RA3 Systems, 8A, Single Pole/Multi-Location, Neutral Required, 120V, RRST-8ANS-LA, Light Almond
- ROCK SKU: LUT-RRST-8ANS-LA
- UPC: 784276808583
- MFG Part #: RRST-8ANS-LA
Estimated Lead Time: 2-3 weeks
Product dimensions
-
Width:
2.25 IN
-
Height:
2.25 IN
-
Depth:
4.5 IN
-
Weight:
0.26 LBS
Maximum Rating: Works with 8A lighting and 5.5A, or 1/4HP, motor loads
- Lutron's new Clear Connect- Type X Radio Frequency; Must be located within 75 ft of a RadioRA 3 wireless processor and each Sunnata RF Neutral Switch should have at least two other non-battery powered Clear Connect-Type X devices within 25 ft
- RA 3 Sunnata RF Neutral Switch has easy wiring screw terminals and requires a neutral wire; Companion Switch (RRST-RS-xx) has screw terminals, does not require a neutral
- Use up to four Sunnata RF Companion Switches (RRST-RS-xx, sold separately) with one primary switch to control one light from up to five locations
- MyLevel Personalization-Program lightbar brightness and off-state locator light; Companion switches will match the settings of the primary switch
- Tap the top of the switch for On, tap the bottom of the switch for Off; Push and hold the bottom for a 30 second delayed off
- Sunnata RF Neutral Switches and coordinating wall plates are available in 20+ colors and offer the exact same look and feel as the companion switches (wall plate and companion switch sold separately)
- RadioRa 3 Processor combines the functionality of the main repeater and Connect Bridge of RadioRA 2 (sold separately)
- Works without Wifi; Local device operation will continue to function if internet connection is lost
| Application | Lighting Control |
| Color | Light Almond |
| Material | Plastic/Metal |
| Type | Switch |
| Standard | cULus, NOM, FCC, IC, IFT |
Product dimensions
-
Width:
2.25 IN
-
Height:
2.25 IN
-
Depth:
4.5 IN
-
Weight:
0.26 LBS
