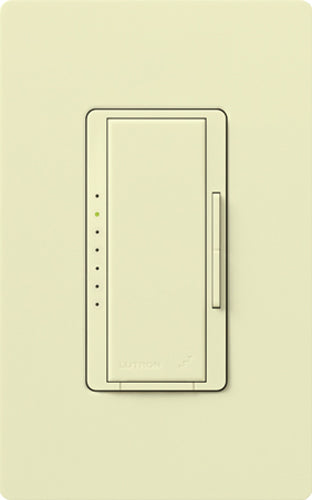

Lutron Maestro RF PRO LED+ Dimmer, Works with RA2/RA3 Systems, Phase Selectable, LED/ ELV/ MLV, Neutral Optional, 120V, RRD-PRO-AL, Almond
- ROCK SKU: LUT-RRD-PRO-AL
- UPC: 784276270229
- MFG Part #: RRD-PRO-AL
Estimated Lead Time: 8-9 weeks
Product dimensions
-
Width:
2.25 IN
-
Height:
2.25 IN
-
Depth:
4.5 IN
-
Weight:
0.27 LBS
Compatible with Lutron RadioRA 2 and RA2 Select lighting control systems. Controls 250 W LED, 500 W incandescent/halogen/ELV, or 400 VA magnetic low-voltage loads. Neutral Wire optional, Phase Selectable for forward or reverse phase control. Tap on to preset level; tap off. Tap twice for full on. Press, hold, and release for delayed fade-to-off. Touch rocker to adjust light level. Provides true dimming from each location with companion dimmers.
- RadioRA 2 Maestro local controls function much like standard dimmers and switches, but can be controlled as part of a lighting control system.
- RadioRA 2 Maestro dimmers incorporate advanced features such as fade-on / fade-off, delayed long fade-to-off, and rapid full-on.
- RadioRA 2 Maestro local controls include a Front Accessible Service Switch (FASS) for lamp replacement. RadioRA 2 Maestro local controls install in single pole or multi-locations. Remote dimmers / switches available for multi-location control.
| Switch Type | Tapswitch |
| Face Material | Metal;Plastic |
| Application | Lighting Control |
| Decorative Color | Almond |
| Connection Type | Screw Terminal |
| Environmental Conditions | 0 to 90% humidity, non-condensing. Indoor use only. |
| Operating Temperature, Maximum | 104 °F |
| Operating Temperature, Minimum | 32 °F |
| Standard | UL, cUL, NOM, FCC, IC, COFETEL |
| Type | Dimmer, multi-location/single-pole |
| Voltage Rating | 120 |
| Wattage | 600 W |
