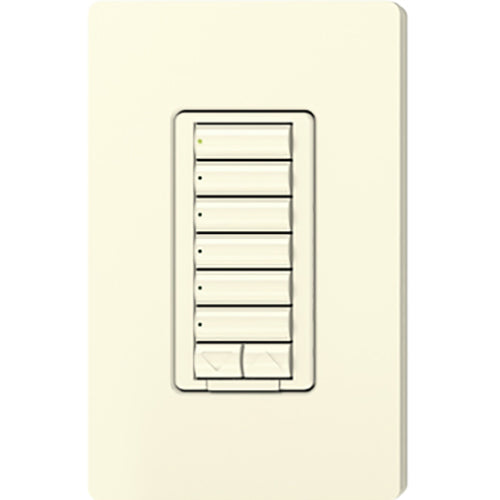

Lutron seeTouch LED+ Hybrid Keypad, Works with RA3 Systems, 100W LED, 6 Button with 1 Raise/Lower, Neutral Required, 120V, RRD-HN6BRL-LA, Light Almond
- ROCK SKU: LUT-RRD-HN6BRL-LA
- UPC: 784276164801
- MFG Part #: RRD-HN6BRL-LA
Estimated Lead Time: 9-10 weeks
Product dimensions
-
Width:
5.4 IN
-
Height:
5.25 IN
-
Depth:
4 IN
-
Weight:
0.47 LBS
6 button with raise/lower and 450W/450VA neutral-wire dimmer (Incandescent/Halogen/Magnetic Low Voltage) or 100W (approved CFL/LED), 120V. Functions as a dimmer and keypad combined into a single device. Neutral-wire controls that can be used with small loads, such as screw-in CFL/LED lamps. Normal keypad operations will be available if the attached load is not installed or if the lamp is burned out. Can be controlled as part of a lighting control system and incorporates advanced features such as fade on/fade off and rapid full on. Easy-to-use buttons, plus a unique backlit engraving option that makes them readable any time of the day or night. Buttons are rounded, allowing engraving to be displayed at an upward angle, increasing readability. Front accessible service switch for safe lamp replacement. Wallplate sold separately.
- Maximum Rating: 100W LED, 450W Incandescent/Halogen, 450VA MLV
- Features Lutron's Clear Connect- Type A Radio Frequency; Must be located within 30 ft (9 m) of a processor or repeater for RF
- Require 120V and have screw terminal connections; Neutral required
- The RA 2 LED+ Hybrid keypad can be used in single pole or with up to 9 companion dimmers for multi-location applications; Companion Dimmer (RD-RD-xx) sold separately
- Interchangeable button kits allow the keypad to be changed to a variety of finishes, colors, button configurations, and personalized markings even after installation
- Program schedules, preset light and shade levels on individual buttons, configure raise/lower buttons, and adjust backlight brightness through Lutron Designer software
- RA2 LED+ Hybrid Keypads include one redeemable credit for a single custom personalized engraved button kit through Lutron
- RA 2 LED+ Hybrid Keypads and coordinating Claro wall plates are available in 10+ colors (wall plate sold separately)
- Backwards Compatible; RadioRA 2 and RadioRA 2 Select systems can be upgraded to RadioRA 3 (some device limitations apply) and RadioRA 2 project files can be converted with one click
- Works without Wifi; Local device operation will continue to function if internet connection is lost
| Application | Lighting Control |
| Switch Type | Push Button |
| Decorative Color | Light Almond |
| Environmental Conditions | 0 to 90% humidity, non-condensing. Indoor use only. |
| Voltage Rating | 120 |
| Type | C.L Hybrid Keypad dimmer |
| Standard | UL, cUL, NOM, FCC, IC, COFETEL |
| Operating Temperature, Maximum | 104 °F |
| Operating Temperature, Minimum | 32 °F |
| Face Material | Metal;Plastic |
Product dimensions
-
Width:
5.4 IN
-
Height:
5.25 IN
-
Depth:
4 IN
-
Weight:
0.47 LBS
