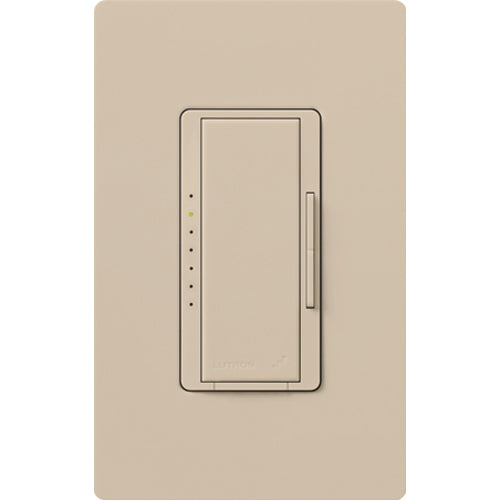

Lutron Maestro RF 3-Wire Dimmer for Ballasts/LED Drivers, Works with RA2 Select/RA3 Systems, 6A, 120-277V, Neutral Required, RRD-F6AN-DV-TP, Taupe
- ROCK SKU: LUT-RRD-F6AN-DV-TP
- UPC: 027557962674
- MFG Part #: RRD-F6AN-DV-TP
Estimated Lead Time: 5-6 weeks
Product dimensions
-
Width:
2.3 IN
-
Height:
2.3 IN
-
Depth:
4.5 IN
-
Weight:
0.4 LBS
Controls 6 A LED driver or 3-wire fluorescent ballast loads. Neutral wire required. Tap on to preset level; tap off. Tap twice for full on. Press, hold, and release for delayed fade-to-off. Touch rocker to adjust light level.
- RadioRA 2 Maestro local controls function much like standard dimmers and switches, but can be controlled as part of a lighting control system.
- RadioRA 2 Maestro dimmers incorporate advanced features such as fade-on / fade-off, delayed long fade-to-off, and rapid full-on.
- RadioRA 2 Maestro local controls include a Front Accessible Service Switch (FASS) for lamp replacement. RadioRA 2 Maestro local controls install in single pole or multi-locations. Remote dimmers / switches available for multi-location control.
| Switch Type | Tapswitch |
| Application | Lighting Control |
| Decorative Color | Taupe |
| Connection Type | Screw Terminal |
| Environmental Conditions | 0 to 90% humidity, non-condensing. Indoor use only. |
| Face Material | Metal;Plastic |
| Operating Temperature, Maximum | 104 °F |
| Operating Temperature, Minimum | 32 °F |
| Standard | UL, FCC, CSA, IC, COFETEL, NOM |
| Type | Dimmer, multi-location/single-pole |
| Voltage Rating | 120 to 277 |
| Amperage Rating | 6;6.0000 |
| Wattage | 1662 W |
