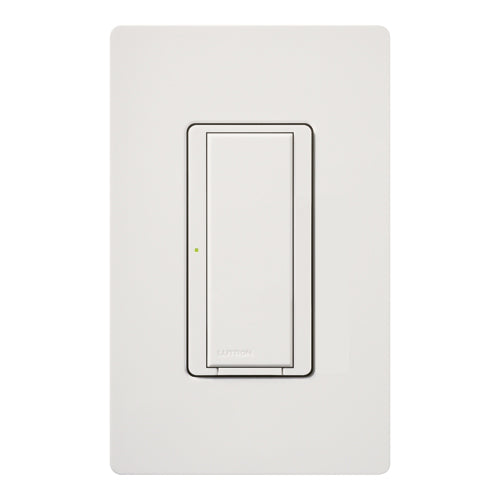

Lutron Maestro RF Dual Voltage Switch, Works with RA2 Select/RA3 Systems, 8A Light/3A Motor, No Neutral Required, 120-277V, RRD-8S-DV-WH, White
- ROCK SKU: LUT-RRD-8S-DV-WH
- UPC: 027557869263
- MFG Part #: RRD-8S-DV-WH
Estimated Lead Time: 5-6 weeks
Product dimensions
-
Width:
2.3 IN
-
Height:
2.3 IN
-
Depth:
4.5 IN
-
Weight:
0.3 LBS
Two-wire electronic lighting and motor load switch, functions much like standard dimmers and switches, but can be controlled as part of a lighting control system, 1/10 HP
- RadioRA 2 Maestro local controls function much like standard dimmers and switches, but can be controlled as part of a lighting control system.
- RadioRA 2 Maestro local controls include a Front Accessible Service Switch (FASS) for lamp replacement. RadioRA 2 Maestro local controls install in single pole or multi-locations. Remote dimmers / switches available for multi-location control.
| Enclosure | Plastic |
| Environmental Conditions | 0 to 90% humidity, non-condensing. Indoor use only. |
| Connection | Screwed Terminal |
| Actuator | Tapswitch |
| Family Color | White |
| Contact Rating | 8/3 |
| Voltage Rating | 120 to 277 |
| Material | Plastic |
| Operating Temperature, Maximum | 104 °F |
| Operating Temperature, Minimum | 32 °F |
| Contact Configuration | N-O |
| Standard | UL, CSA, NOM, FCC, IC, COFETEL, ANATEL |
| Insulation | Plastic |
| Wattage | 2216 W/831 W |
| Material Quality | Plastic/Metal |
| Model | Wireless electronic switch, multi-location/single-pole |
| Mounting | Wallbox |
| Amperage Rating | 8/3 |
Product dimensions
-
Width:
2.3 IN
-
Height:
2.3 IN
-
Depth:
4.5 IN
-
Weight:
0.3 LBS
