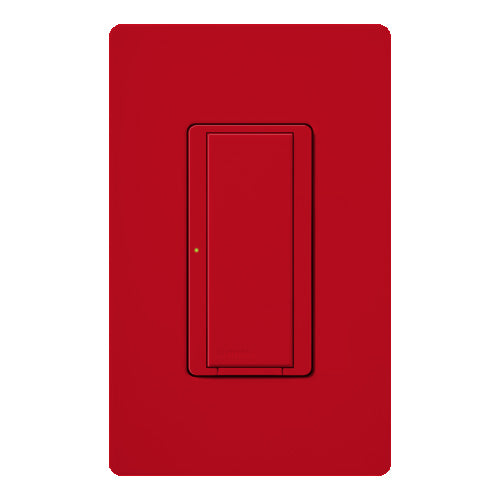

Lutron Maestro RF Switch, Works with RA2Select/RA3, 8A Light/5.8A Motor, Single Pole/Multi-Location, Neutral Required, 120V, RRD-8ANS-HT, Hot
- ROCK SKU: LUT-RRD-8ANS-HT
- UPC: 027557771672
- MFG Part #: RRD-8ANS-HT
Estimated Lead Time: 3-4 weeks
Product dimensions
-
Width:
2.3 IN
-
Height:
2.3 IN
-
Depth:
4.5 IN
-
Weight:
0.3 LBS
Rated for 8 A incandescent/halogen, magnetic low-voltage, electronic low-voltage, LED/CFL, or fluorescent loads, or 5.8 A (1/4 HP) general purpose fans and motor loads. Neutral wire required. Tap switch on/off.
- RadioRA 2 Maestro local controls function much like standard dimmers and switches, but can be controlled as part of a lighting control system.
- RadioRA 2 Maestro local controls include a Front Accessible Service Switch (FASS) for lamp replacement. RadioRA 2 Maestro local controls install in single pole or multi-locations. Remote dimmers / switches available for multi-location control.
| Application | Lighting Control |
| Decorative Color | Hot |
| Operating Temperature, Maximum | 104 °F |
| Operating Temperature, Minimum | 32 °F |
| Enclosure | Plastic |
| Environmental Conditions | 0 to 90% humidity, non-condensing. Indoor use only. |
| Connection | Screwed Terminal |
| Contact Configuration | N-O |
| Contact Rating | 8/5.8 |
| Standard | UL, CSA, NOM, FCC, IC, COFETEL, ANATEL |
| Voltage Rating | 120 |
| Actuator | Tapswitch |
| Material | Plastic |
| Wattage | 960 W/696 W |
| Amperage Rating | 8/5.8 |
| Model | Wireless electronic switch, multi-location/single-pole |
| Mounting | Wallbox |
| Insulation | Plastic |
Product dimensions
-
Width:
2.3 IN
-
Height:
2.3 IN
-
Depth:
4.5 IN
-
Weight:
0.3 LBS
