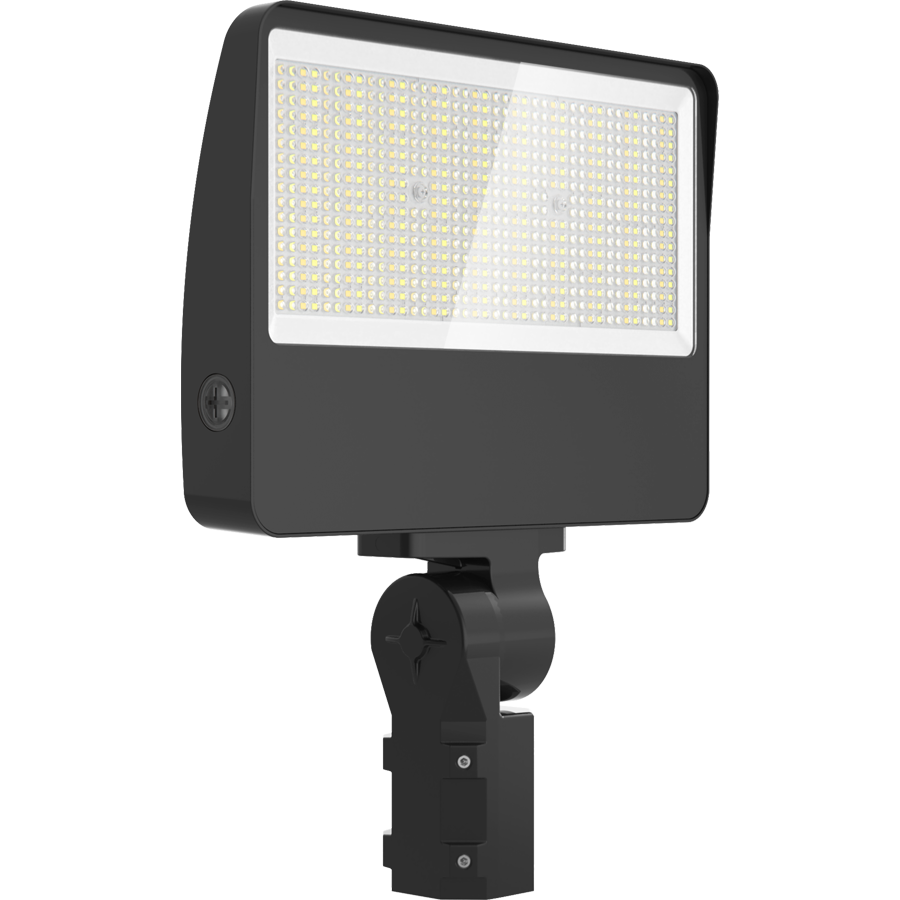

RAB Lighting XL22 Flood, 150/125/100/75W, CCT Selectable, 480V, Slipfitter+Trunnion, Photocell, Bronze, XL22-150/480
- ROCK SKU: RAB-XL22-150/480
- UPC: 192552052405
- MFG Part #: XL22-150/480
$422.00
The RAB Lighting XL22-150/480 is a wattage- and CCT-selectable LED flood fixture delivering 150/125/100/75W at 3000K, 4000K, or 5000K, producing up to 23,285 lumens with efficacy reaching 185.4 lm/W, on a 480V input. Equipped with slipfitter and trunnion mounting options plus an integrated photocell, it suits parking lots, building facades, and area lighting applications requiring field-adjustable output. Rated for 100,000 hours with a Bronze finish.
| Watts | 150/125/100/75W (Field-Adjustable) |
| Lumens | 11,517–23,285 lm |
| Color Temperature | CCT Selectable (3000K/4000K/5000K) |
| Voltage | 480V |
| Efficacy | 136.3–185.4 lm/W |
| Dimming | Photocell |
| Mounting | Slipfitter + Trunnion |
| Finish | Bronze |
| Rated Life | 100,000 hours |
