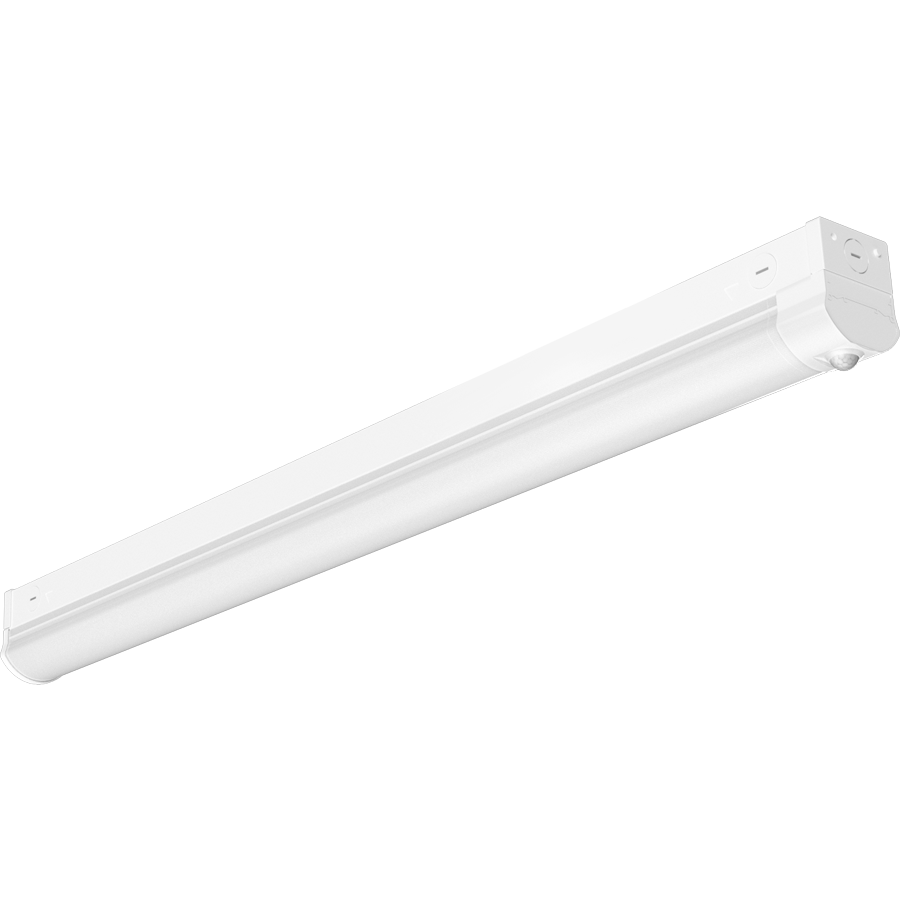

RAB Lighting SR3, 14/18/22/26/30W, CCT Selectable, PIR Sensor, White, SR3/PIR
- ROCK SKU: RAB-SR3/PIR
- UPC: 192552046602
- MFG Part #: SR3/PIR
$116.00
The RAB Lighting SR3/PIR is a 3-foot LED strip/wrap luminaire rated 14–30W with selectable CCT (3500/4000/5000/5700/6500K) and an integrated passive infrared (PIR) occupancy sensor, suited for stairwells, corridors, and general ambient applications. Output ranges from 2,036 to 4,317 lumens at efficacy up to 146.2 LPW, with a 100,000-hour rated life. DLC listed for Direct Linear Ambient and Stairwell/Passageway categories; operates on 120–277V with a junction box adapter. White finish.
| Watts | 14/18/22/26/30W (Field-Adjustable) |
| Lumens | 2,036–4,317 lm |
| Color Temperature | CCT Selectable (3500K/4000K/5000K/5700K/6500K) |
| Voltage | 120/208/240/277V |
| Sensor | Passive Infrared |
| Driver | Constant Current |
| Rated Life | 100,000 hours |
| DLC Listed | Yes (S-QFCG72, S-9JQPSP) |
