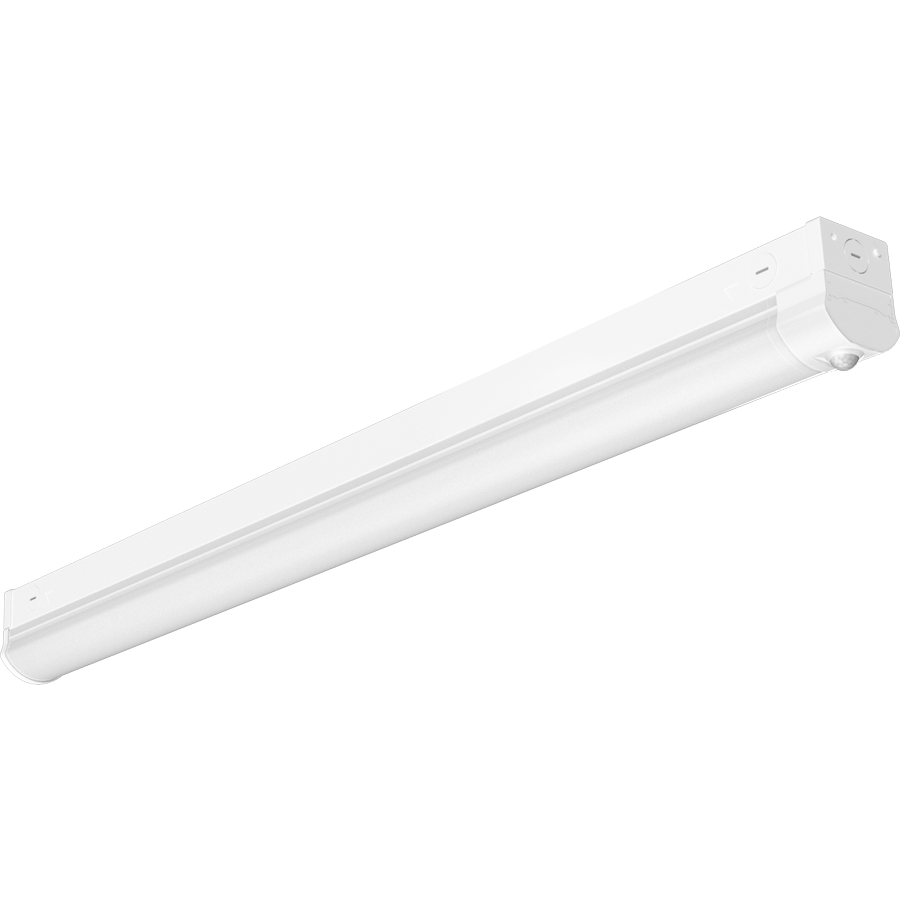

RAB Lighting SR3, 14/18/22/26/30W, CCT Selectable, PIR Sensor, Battery Backup, White, SR3/PIR/E
- ROCK SKU: RAB-SR3/PIR/E
- UPC:
- MFG Part #: SR3/PIR/E
$186.00
The RAB Lighting SR3/PIR/E is a 3-foot LED strip/wrap luminaire rated 14–30W with selectable CCT (3500/4000/5000/5700/6500K), integrated passive infrared (PIR) occupancy sensor, and battery backup, suited for stairwells, corridors, and general ambient applications. Output ranges from 2,036 to 4,317 lumens at efficacy up to 146.2 LPW, with a 100,000-hour rated life. DLC listed for Direct Linear Ambient and Stairwell/Passageway categories; operates on 120–277V. White finish.
| Watts | 14/18/22/26/30W (Field-Adjustable) |
| Lumens | 2,036–4,317 lm |
| Color Temperature | CCT Selectable (3500K/4000K/5000K/5700K/6500K) |
| Voltage | 120/208/240/277V |
| Sensor | Passive Infrared |
| Driver | Constant Current |
| Rated Life | 100,000 hours |
| DLC Listed | Yes (S-QFCG72, S-9JQPSP) |
