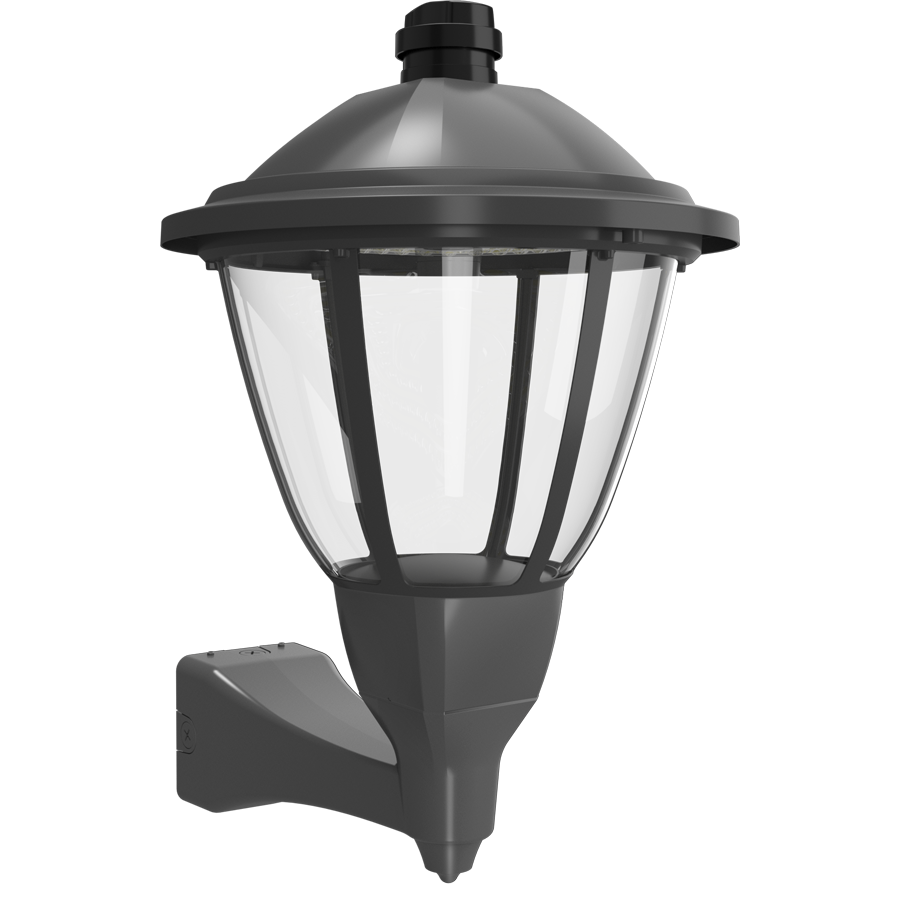

RAB Lighting HTG Round Area Light, 120/100/80/60W, CCT Selectable, 480V, Wall Mount, 7-Pin Receptacle, Bronze, HTG-RWM/480/7PRS
- ROCK SKU: RAB-HTG-RWM/480/7PRS
- UPC:
- MFG Part #: HTG-RWM/480/7PRS
$693.00
The RAB Lighting HTG-RWM/480/7PRS is a 120/100/80/60W CCT-selectable round LED area light wall-mounted for roadways, parking lots, and commercial site lighting on 480V circuits. Output ranges from 6,704 to 15,642 lumens with selectable 3000/4000/5000K color temperature and T3/T5 optics, delivering efficacy up to 142.3 lm/W at 100,000-hour rated life. The integrated 7-pin NEMA receptacle accommodates shorting caps or photocontrols. Bronze finish.
| Watts | 120/100/80/60W (Field-Adjustable) |
| Lumens | 6,704–15,642 lm |
| Color Temperature | CCT Selectable (3000K/4000K/5000K) |
| Voltage | 480V |
| Driver | Constant Current LED |
| Rated Life | 100,000 hours |
| Efficacy | 102.8–142.3 lm/W |
| Mounting | Wall Mount, 7-Pin Receptacle |
| Finish | Bronze |
