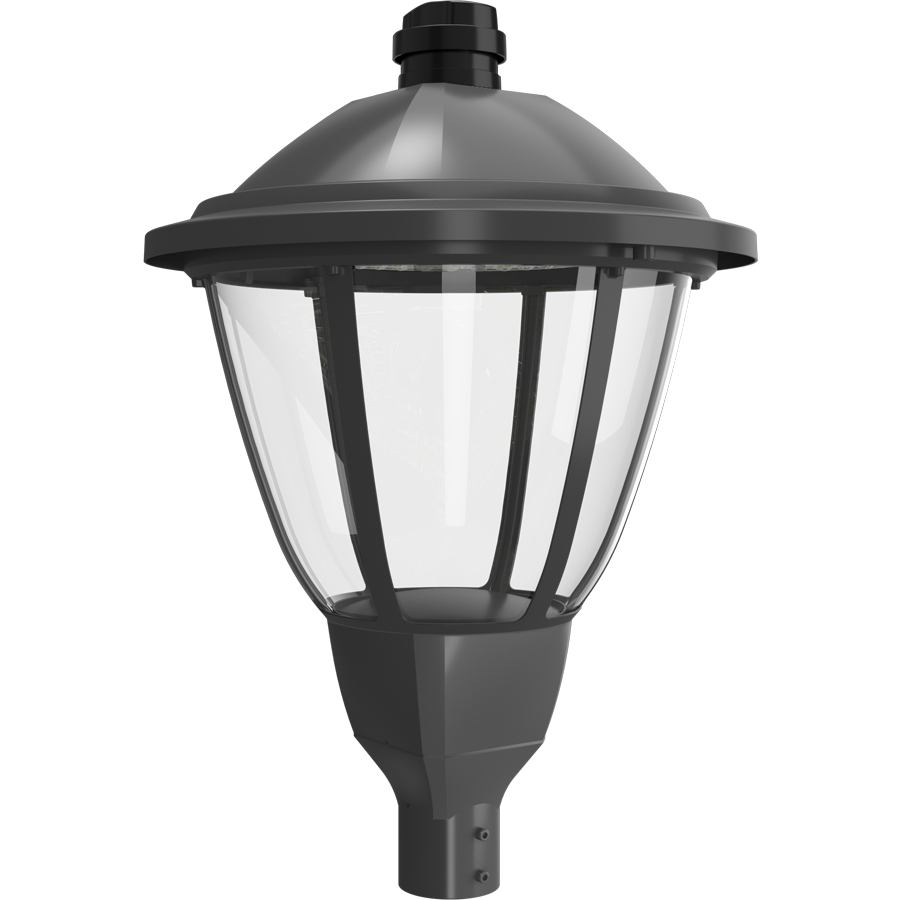

RAB Lighting HTG Round Area Light, 120/100/80/60W, CCT Selectable, 480V, Pole Mount, 7-Pin Receptacle, Bronze, HTG-R/480/7PRS
- ROCK SKU: RAB-HTG-R/480/7PRS
- UPC:
- MFG Part #: HTG-R/480/7PRS
$649.00
The RAB Lighting HTG-R/480/7PRS is a round LED area light rated at 120/100/80/60W (selectable), designed for pole-mount applications in parking lots, roadways, and commercial site lighting operating on 480V. It delivers up to 15,642 lumens with CCT selectability across 3000K, 4000K, and 5000K, and features a 7-pin NEMA receptacle for photocell or control device compatibility, a 100,000-hour rated life, and a bronze finish.
| Watts | 120/100/80/60W (Field-Adjustable) |
| Lumens | 6,704–15,642 lm |
| Color Temperature | CCT Selectable (3000K/4000K/5000K) |
| Voltage | 480V |
| Efficacy | 102.8–142.3 lm/W |
| Rated Life | 100,000 hours |
| Driver | Constant Current |
| Finish | Bronze |
| Mounting | Pole mount, 7-pin receptacle |
