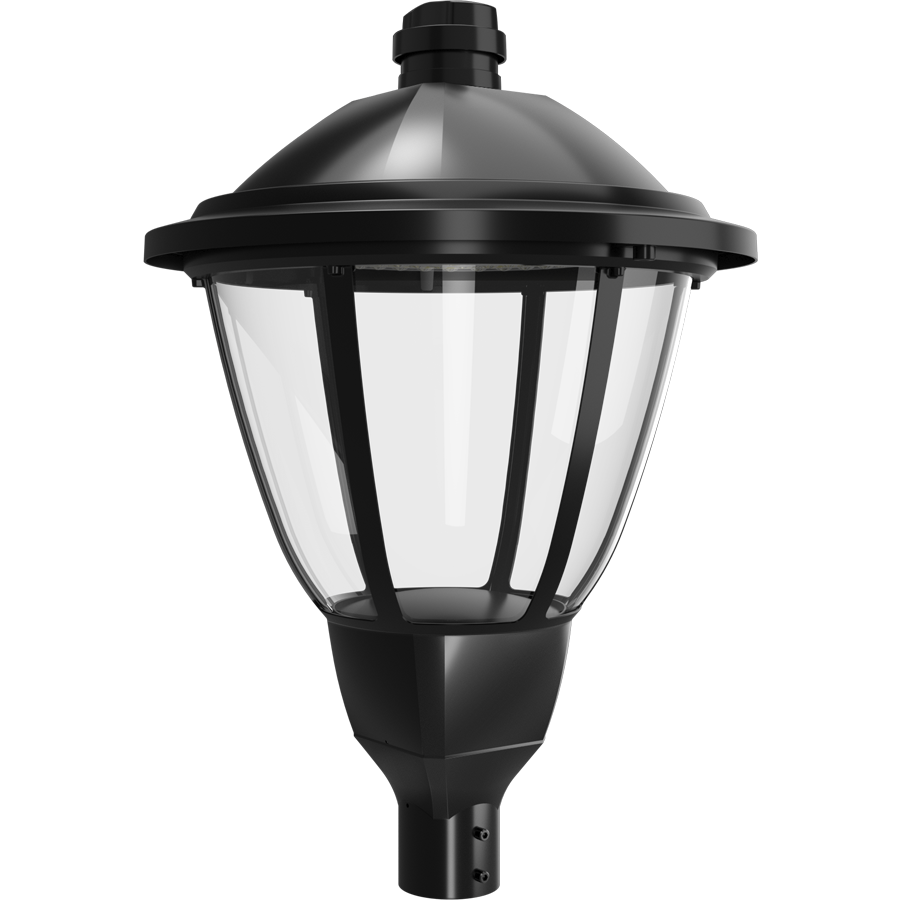

RAB Lighting HTG Round Area Light, 120/100/80/60W, CCT Selectable, 480V, 7-Pin Receptacle, Pole Mount, Black, HTG-RB/480/7PRS
- ROCK SKU: RAB-HTG-RB/480/7PRS
- UPC:
- MFG Part #: HTG-RB/480/7PRS
$649.00
The RAB Lighting HTG-RB/480/7PRS is a 120/100/80/60W LED round area light designed for pole-mount outdoor applications including parking lots, plazas, and roadways on a dedicated 480V circuit. Field-selectable CCT (3000/4000/5000K) and wattage allow a single SKU to meet varied project specifications, while the integrated 7-pin NEMA receptacle supports photocontrol compatibility. Output ranges from 6,704 to 15,642 lumens at up to 142.3 lm/W efficacy with a 100,000-hour rated life. Black finish.
| Watts | 120/100/80/60W (Field-Adjustable) |
| Lumens | 6,704–15,642 lm |
| Color Temperature | CCT Selectable (3000K/4000K/5000K) |
| Voltage | 480V |
| Input Power | 60.9–117.1W |
| Driver | Constant Current |
| Rated Life | 100,000 hours |
| Finish | Black |
| Mount | Pole Mount, 7-Pin Receptacle |
