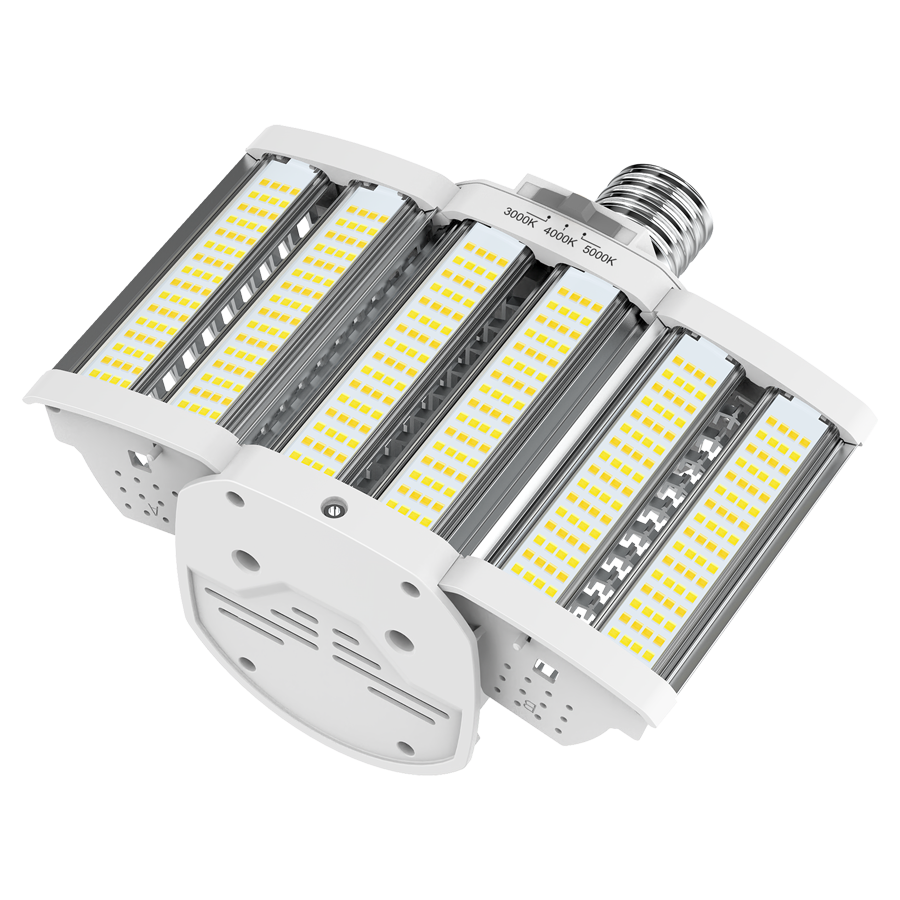

RAB Lighting HIDFA LED HID Replacement, 80W, CCT Selectable, CRI80, EX39 Horizontal Base, 5-Pin Sensor Port, HIDFA-80-H-EX39-CCT Selectable-BYP/5SP
- ROCK SKU: RAB-HIDFA-80-H-EX39-8CCT-BYP/5SP
- UPC: 192552028691
- MFG Part #: HIDFA-80-H-EX39-8CCT-BYP/5SP
$135.00
The RAB Lighting HIDFA-80-H-EX39-8CCT-BYP/5SP is an 80W LED HID replacement lamp with a horizontal EX39 mogul base engineered for ballast-bypass retrofit in shoebox and area luminaires on 100–277V. Selectable CCT (3000/4000/5000K) delivers up to 12,000 lumens at 150 lm/W efficacy with 80 CRI and a 50,000-hour rated life. The integrated 5-pin sensor port enables compatibility with occupancy and photocell controls for automated energy management in parking, roadway, and site-lighting applications.
| Watts | 80W |
| Lumens | 11,200–12,000 lm |
| Color Temperature | CCT Selectable (3000K/4000K/5000K) |
| CRI | 80 |
| Voltage | 100–277V |
| Efficacy | 140–150 lm/W |
| Rated Life | 50,000 hours |
| Base | EX39 Horizontal |
| Features | Ballast Bypass, 5-Pin Sensor Port |
