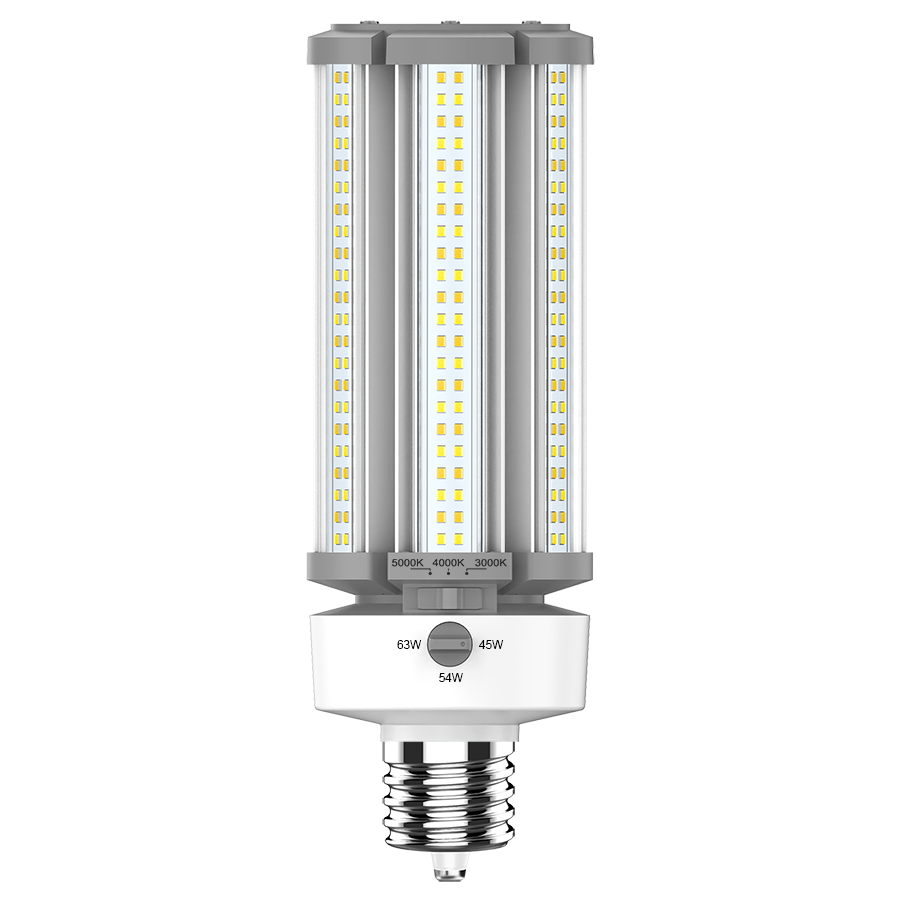

RAB Lighting HIDFA LED HID Replacement, 45/54/63W, CCT Selectable, CRI80, EX39 Ballast Bypass, 5-Pin Sensor Port, HIDFA-63S-EX39-CCT Selectable-BYP/5SP
- ROCK SKU: RAB-HIDFA-63S-EX39-8CCT-BYP/5SP
- UPC: 192552026970
- MFG Part #: HIDFA-63S-EX39-8CCT-BYP/5SP
$75.00
The RAB Lighting HIDFA-63S-EX39-8CCT-BYP/5SP is a field-adjustable 45/54/63W LED HID replacement lamp with an EX39 mogul base for direct ballast-bypass retrofit in high-bay, warehouse, and industrial fixtures. Selectable wattage and CCT (3000/4000/5000K) provide up to 9,135 lumens at 135–145 lm/W efficacy with 80 CRI and a 50,000-hour rated life. The integrated 5-pin sensor port supports occupancy and daylight harvesting controls, and DLC listing (ID: PNEUJU9B) qualifies the lamp for utility incentive programs on 100–277V installations.
| Watts | 45/54/63W (Field-Adjustable) |
| Lumens | 6,075–9,135 lm |
| Color Temperature | CCT Selectable (3000K/4000K/5000K) |
| CRI | 80 |
| Voltage | 120–277V |
| Efficacy | 135–145 lm/W |
| Rated Life | 50,000 hours |
| Base | EX39 |
| DLC | Certified (PNEUJU9B) |
| Features | Ballast Bypass, 5-Pin Sensor Port |
