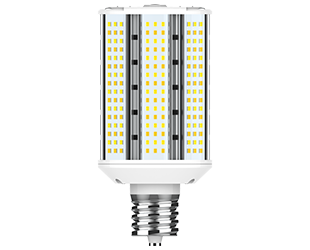

RAB Lighting HIDFA HID Replacement Lamp, 10/20/30W, CCT Selectable, CRI 80, EX39, Ballast Bypass, HIDFA-30S-H-EX39-CCT Selectable-BYP
- ROCK SKU: RAB-HIDFA-30S-H-EX39-8CCT-BYP
- UPC: 192552005111
- MFG Part #: HIDFA-30S-H-EX39-8CCT-BYP
$58.00
The RAB Lighting HIDFA-30S-H-EX39-8CCT-BYP is a field-adjustable 10/20/30W LED HID replacement lamp in a horizontal EX39 base configuration, designed for direct ballast-bypass retrofit of HID fixtures in commercial and industrial applications. Output is selectable at 1,600/3,200/4,800 lumens with CCT switchable among 3000K, 4000K, and 5000K, delivering up to 160 LPW efficacy on 100–277V. Constant current driver and 50,000-hour rated life reduce maintenance cycles in warehouses, manufacturing facilities, and parking structures.
| Watts | 10/20/30W (Field-Adjustable) |
| Lumens | 1,600–4,800 lm |
| Color Temperature | CCT Selectable (3000K/4000K/5000K) |
| CRI | 80 |
| Input Voltage | 100-277V |
| Efficacy | 160 lm/W |
| Rated Life | 50,000 hours |
| Base Type | EX39 |
| Finish | Clear |
