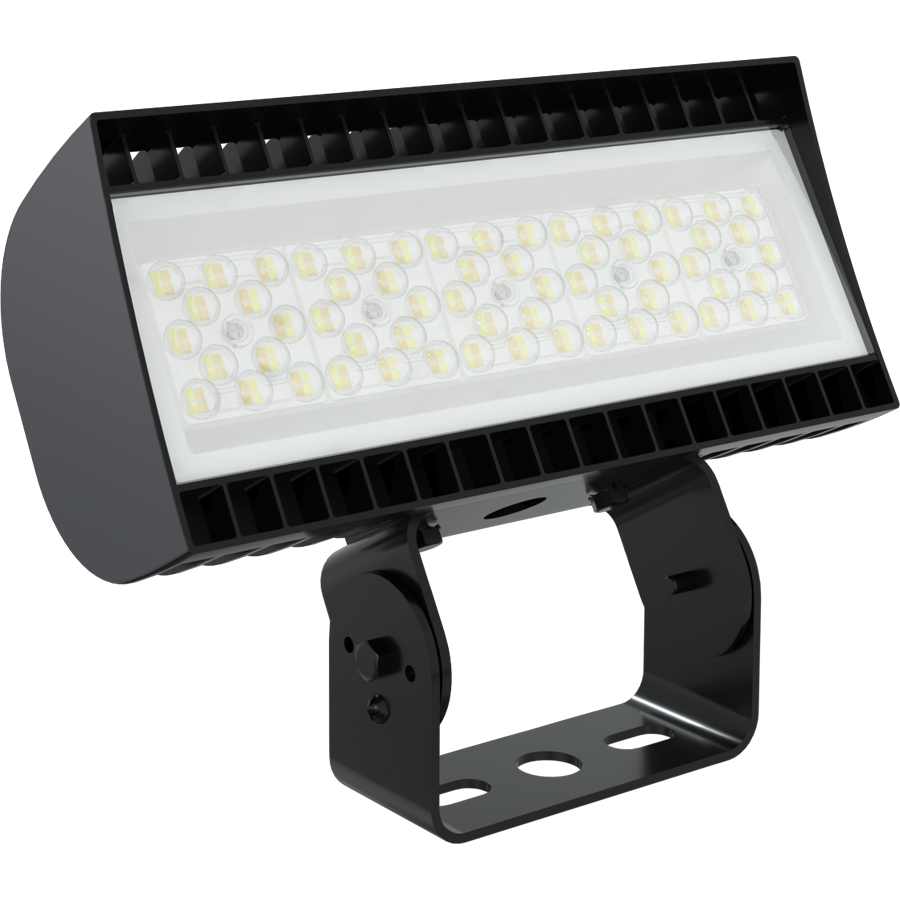

RAB Lighting FXLED XS Field Adjustable, 80/60/40W, CCT Selectable, 480V, Trunnion, 7-Pin, Bronze, FXLEDXST/480/7PR
- ROCK SKU: RAB-FXLEDXST/480/7PR
- UPC: 192552028127
- MFG Part #: FXLEDXST/480/7PR
$755.00
The RAB Lighting FXLEDXST/480/7PR is a field-adjustable outdoor LED flood fixture in the compact FXLED XS series for area and site lighting, configured with a trunnion mount, 7-pin NEMA receptacle, and bronze finish for 480V service. Wattage is selectable at 80/60/40W, delivering up to 12,083 lumens at efficacies of 137.5–156.5 lm/W, with CCT selectable at 3000K, 4000K, or 5000K. Constant-current driver with a 100,000-hour rated life; the 7-pin receptacle enables photocontrol or networked dimming integration on high-voltage circuits.
| Watts | 80/60/40W (Field-Adjustable) |
| Lumens | 5,927–12,083 lm |
| Color Temperature | CCT Selectable (3000K/4000K/5000K) |
| Voltage | 480V |
| Driver | Constant Current |
| Rated Life | 100,000 hours |
| Finish | Bronze |
| Mount Type | Trunnion, 7-Pin Receptacle |
