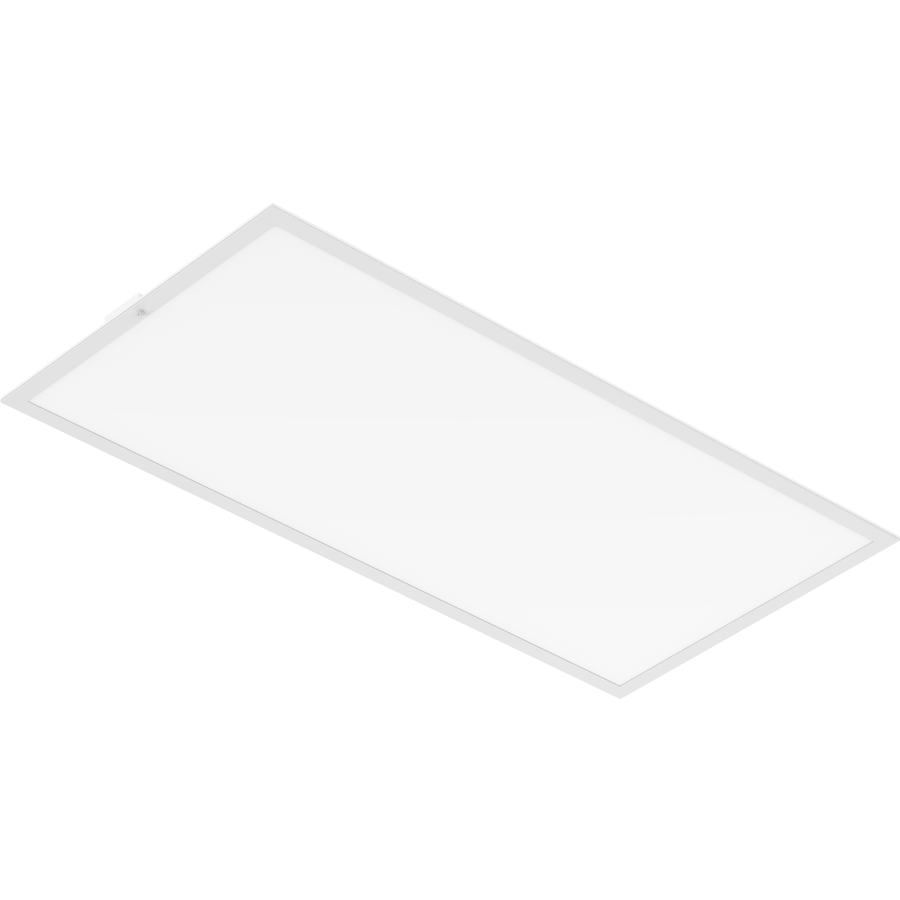

RAB Lighting EZPAN HE, 50/40/30W, CCT Selectable, 0-10V Dimming, Battery Backup, White, EZP2X4HE/E
- ROCK SKU: RAB-EZP2X4HE/E
- UPC: 192552018241
- MFG Part #: EZP2X4HE/E
$278.00
The RAB Lighting EZP2X4HE/E is a 2x4 high-efficacy LED flat panel (EZPAN HE) with integrated battery backup, targeting energy-code-sensitive commercial projects in offices, healthcare, and education where emergency egress lighting is required. Selectable wattage of 50/40/30W with field-adjustable CCT (3500/4000/5000K) and 0-10V dimming support flexible specification, while DLC Premium listing (ID: S-2BZ1QL) and efficacy up to 155.6 lm/W with up to 6,967 lumens qualify the fixture for utility rebate programs. Rated 100,000 hours on 120–277V universal voltage, white finish.
| Watts | 50/40/30W (Field-Adjustable) |
| Lumens | 4,486–6,967 lm |
| Color Temperature | CCT Selectable (3500K/4000K/5000K) |
| Dimming | 0-10V |
| Driver | Constant Current |
| Rated Life | 100,000 hours |
| Finish | White |
| Battery Backup | Yes |
| DLC Certification | DLC Premium (S-2BZ1QL) |
