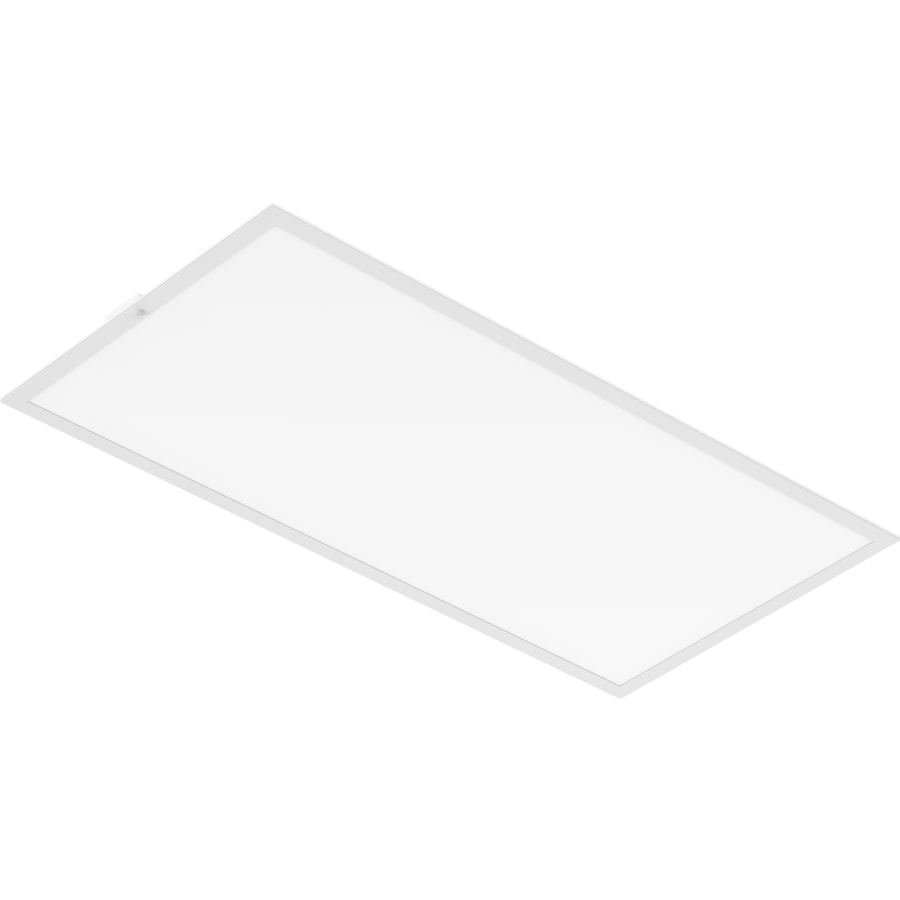

RAB Lighting EZPAN, 50/40/30W, CCT Selectable, 0-10V Dimming, Battery Backup, White, EZP2X4/E
- ROCK SKU: RAB-EZP2X4/E
- UPC: 192552018180
- MFG Part #: EZP2X4/E
$273.00
The RAB Lighting EZP2X4/E is a 2x4 LED flat panel (EZPAN) with integrated battery backup, suited for commercial offices, schools, and healthcare facilities where code-required emergency egress illumination is needed. Selectable wattage of 50/40/30W and field-adjustable CCT (3500/4000/5000K) with 0-10V dimming provide flexible commissioning across tenant and new-construction projects. Delivering up to 6,352 lumens at efficacy up to 140 lm/W, the fixture is DLC listed (ID: S-4LR47P) with a 100,000-hour rated life on 120–277V universal voltage, white finish.
| Watts | 50/40/30W (Field-Adjustable) |
| Lumens | 3,961–6,352 lm |
| Color Temperature | CCT Selectable (3500K/4000K/5000K) |
| Dimming | 0-10V |
| Driver | Constant Current |
| Rated Life | 100,000 hours |
| Finish | White |
| Battery Backup | Yes |
| DLC Certification | DLC (S-4LR47P) |
