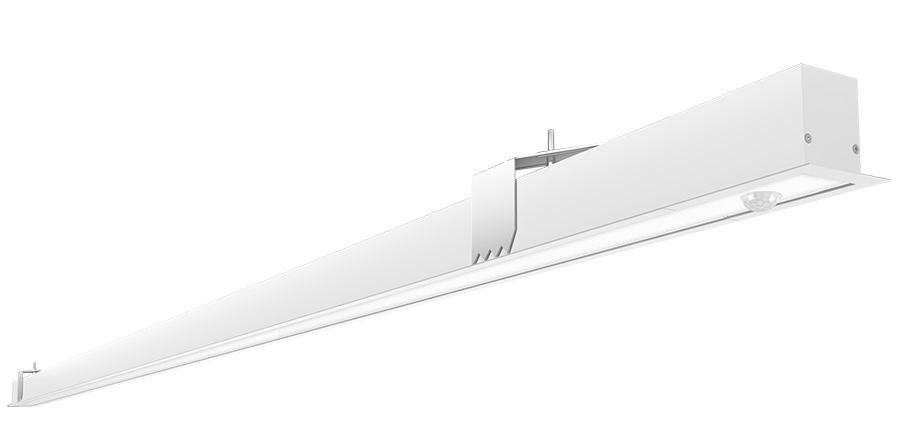

RAB Lighting BOA Recessed Downlight, 80/56/48/40/20W, CCT Selectable, PIR, Battery Backup, White, BOA8R/PIR/E
- ROCK SKU: RAB-BOA8R/PIR/E
- UPC:
- MFG Part #: BOA8R/PIR/E
Contact us for pricing
CONTACT FOR PRICING
The RAB Lighting BOA8R/PIR/E is an 8-inch LED recessed downlight with integrated PIR occupancy sensor and battery backup, designed for commercial interiors where occupancy-responsive dimming and emergency egress compliance are both required. Selectable wattage (80/56/48/40/20W) and CCT (3000K/3500K/4000K) allow field configuration, delivering up to 9,963 lumens at efficacy up to 137.1 lm/W. DLC listed; operates on 120–277V with a white finish.
| Watts | 80/56/48/40/20W (Field-Adjustable) |
| Lumens | 2,359–9,963 lm |
| Color Temperature | CCT Selectable (3000K/3500K/4000K) |
| Voltage | 120–277V |
| Rated Life | 100,000 hours |
| Battery Backup | Yes |
| Motion Sensor | PIR (Passive Infrared) |
| Finish | White |
| DLC Certified | Yes (S-RZ60V9) |
