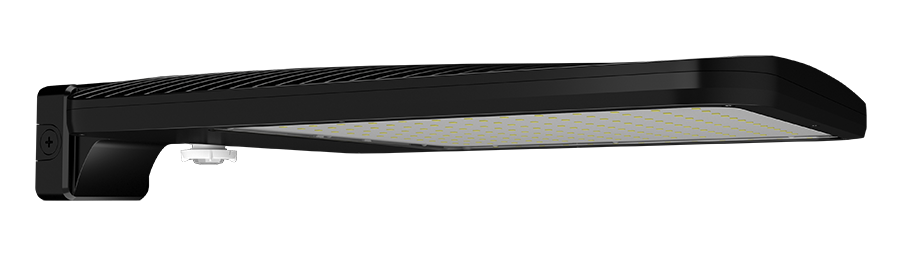

RAB Lighting ALED XL3 Area Light, 300/345/385W, 5000K, 480V, Wall Mount, 20 ft. Lens, Black, ALEDXL3TWMB/480/WS2
- ROCK SKU: RAB-ALEDXL3TWMB/480/WS2
- UPC:
- MFG Part #: ALEDXL3TWMB/480/WS2
$1,936.00
The RAB Lighting ALEDXL3TWMB/480/WS2 is a 300/345/385W LED area light designed for wall-mount applications on parking lots, roadways, and large commercial sites requiring 480V infrastructure. Delivering up to 47,596 lumens at 5000K with a Type III distribution and 20 ft. WattStop lens for height-optimized cutoff control, it operates on a constant current driver with selectable wattage steps for load flexibility. DLC Premium listed, TAA compliant, and finished in black.
| Wattage | 300/345/385W (Field-Adjustable) |
| Lumens | 39,838–47,596 lm |
| Color Temperature | 5000K |
| Voltage | 480V |
| Driver | Constant Current |
| Rated Life | 100,000 hours |
| Finish | Black |
| DLC Certified | DLC Premium (S-MCIN1W) |
| Mount | Wall Mount |
