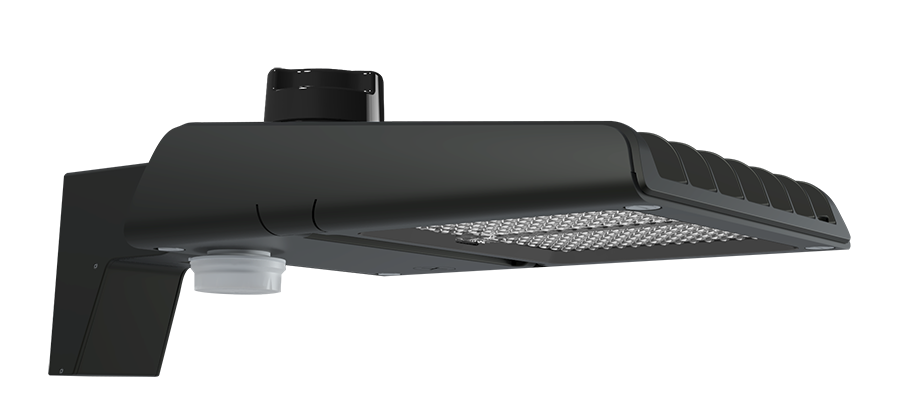

RAB Lighting A22 Area Light, 70/60/50W, CCT Selectable, 480V, Type V Pole Mount, Bronze, A22-5T70/480/MVS
- ROCK SKU: RAB-A22-5T70/480/MVS
- UPC:
- MFG Part #: A22-5T70/480/MVS
The RAB Lighting A22-5T70/480/MVS is a 70/60/50W LED area light configured for Type V pole-mount distribution on 480V systems, suited for parking areas, campuses, and street lighting. It delivers up to 10,927 lumens with CCT selectable between 3000K, 4000K, and 5000K, achieving efficacy up to 163.5 lm/W, and is DLC Premium listed (ID: S-1P3NTN) with a 100,000-hour rated life. The MVS multi-voltage sensor option supports integrated occupancy or photocell control. Bronze finish.
| Watts | 70/60/50W (Field-Adjustable) |
| Lumens | 10,927–7,524 lm |
| Color Temperature | CCT Selectable (3000K/4000K/5000K) |
| Voltage | 480V |
| Rated Life | 100,000 hours |
| Mount Type | Type V Pole Mount (MVS) |
| Finish | Bronze |
| DLC Certification | DLC Premium |
