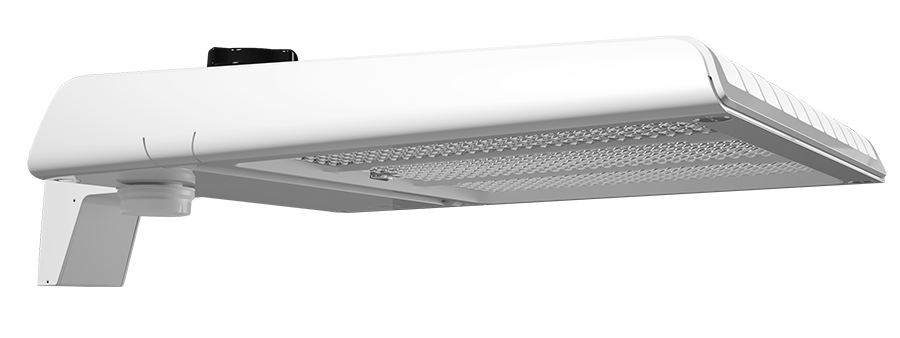

RAB Lighting A22 Area Light, 320/280/250W, CCT Selectable, 480V, Type V Pole Mount, White, A22-5T320W/480/MVS
- ROCK SKU: RAB-A22-5T320W/480/MVS
- UPC:
- MFG Part #: A22-5T320W/480/MVS
The RAB Lighting A22-5T320W/480/MVS is a 320/280/250W LED area light engineered for pole-mounted outdoor applications including parking lots, campuses, and roadways, featuring a Type V distribution in a white finish with a multi-volt 480V driver. Selectable CCT (3000/4000/5000K) and wattage allow field configuration, delivering up to 45,958 lumens at up to 165.5 lm/W efficacy. DLC Premium listed (ID: S-7NRH57) with a 100,000-hour rated life and LightCloud Blue outdoor controls compatibility.
| Watts | 320/280/250W (Field-Adjustable) |
| Lumens | 36,076–45,958 lm |
| Color Temperature | CCT Selectable (3000K/4000K/5000K) |
| Voltage | 480V |
| Rated Life | 100,000 hours |
| IP Rating | IP65 |
| Finish | White |
| DLC | DLC Premium (S-7NRH57) |
| Mounting | Type V Pole Mount |
| Driver | Constant Current |
