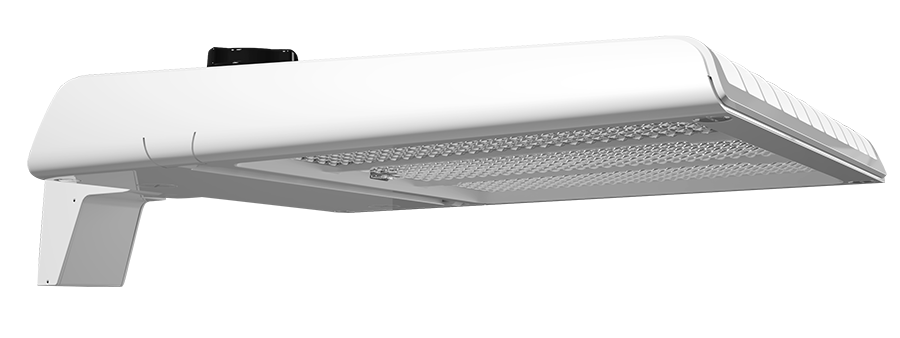

RAB Lighting A22 Area Light, 320/280/250W, CCT Selectable, 480V, Type V Pole Mount, 7PRS, White, A22-5T320W/480
- ROCK SKU: RAB-A22-5T320W/480
- UPC:
- MFG Part #: A22-5T320W/480
The RAB Lighting A22-5T320W/480 is a 320/280/250W LED area light for pole-mounted outdoor installations including parking lots, roadways, and campuses, featuring a Type V distribution in a white finish with a 480V driver and 7-pin receptacle (7PRS) for photocell or controls integration. Selectable CCT (3000/4000/5000K) and wattage provide field flexibility, delivering up to 45,958 lumens at up to 165.5 lm/W efficacy. DLC Premium listed (ID: S-7NRH57) with a 100,000-hour rated life and LightCloud Blue outdoor controls compatibility.
| Watts | 320/280/250W (Field-Adjustable) |
| Lumens | 36,076–45,958 lm |
| Color Temperature | CCT Selectable (3000K/4000K/5000K) |
| Voltage | 480V |
| Rated Life | 100,000 hours |
| IP Rating | IP65 |
| Finish | White |
| DLC | DLC Premium (S-7NRH57) |
| Mounting | Type V Pole Mount, 7-Pin Receptacle |
| Driver | Constant Current |
