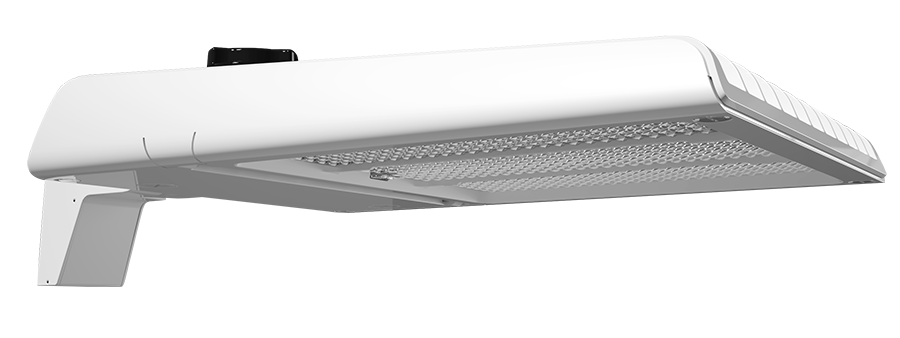

RAB Lighting A22 Area Light, 320/280/250W, CCT Selectable, 480V, Type IV, 7PRS, White, A22-4T320W/480
- ROCK SKU: RAB-A22-4T320W/480
- UPC:
- MFG Part #: A22-4T320W/480
$564.00
The RAB Lighting A22-4T320W/480 is a 320/280/250W LED area light rated for 480V service, designed for pole-mount use in parking lots, roadways, and campuses requiring Type IV asymmetric distribution. Selectable CCT (3000/4000/5000K) and wattage allow field configuration, delivering up to 43,960 lumens at 157.7 lm/W efficacy with a 100,000-hour rated life. DLC Premium listed (ID: S-39HGKN) with 7-pin receptacle (7PRS) for networked control compatibility. White finish.
| Watts | 320/280/250W (Field-Adjustable) |
| Lumens | 34,413–43,960 lm |
| Color Temperature | CCT Selectable (3000K/4000K/5000K) |
| Voltage | 480V |
| Driver | Constant Current |
| Rated Life | 100,000 hours |
| Finish | White |
| Mounting | Type IV Pole Mount, 7-Pin Receptacle |
| DLC | DLC Premium (S-39HGKN) |
