/ RAB Lighting A22 Area Light, 320/280/250W, CCT Selectable,...

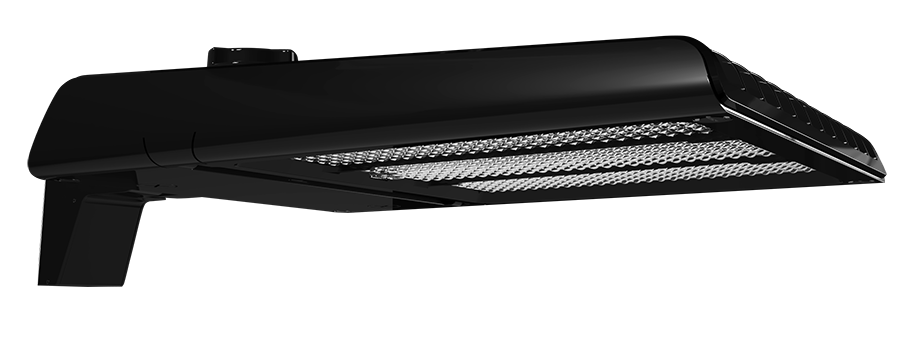

RAB Lighting A22 Area Light, 320/280/250W, CCT Selectable, 120-277V, Type V Pole Mount, 7PRS, Black, A22-5T320B
- ROCK SKU: RAB-A22-5T320B
- UPC:
- MFG Part #: A22-5T320B
$518.00
The RAB Lighting A22-5T320B is a 320/280/250W LED area light for pole-mounted outdoor installations such as parking lots, roadways, and campuses, featuring a Type V distribution in a black finish with a 7-pin receptacle (7PRS) for photocell or controls connectivity. Selectable CCT (3000/4000/5000K) and wattage provide field flexibility on 120–277V, delivering up to 45,974 lumens at up to 157.7 lm/W efficacy. DLC Premium listed (ID: S-H8LQVM) with a 100,000-hour rated life and LightCloud Blue outdoor controls compatibility.
| Watts | 320/280/250W (Field-Adjustable) |
| Lumens | 35,350–45,974 lm |
| Color Temperature | CCT Selectable (3000K/4000K/5000K) |
| Voltage | 120-277V |
| Rated Life | 100,000 hours |
| IP Rating | IP65 |
| Finish | Black |
| DLC | DLC Premium (S-H8LQVM) |
| Mounting | Type V Pole Mount, 7-Pin Receptacle |
| Driver | Constant Current |
