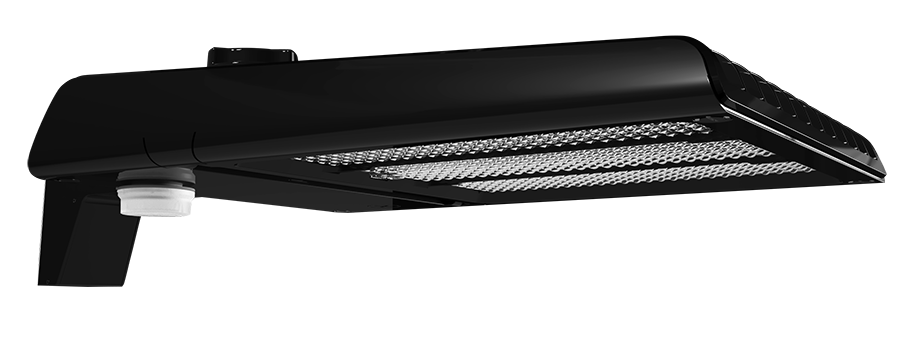

RAB Lighting A22 Area Light, 320/280/250W, CCT Selectable, 120-277V, 7-Pin Receptacle, Black, A22-320B/MVS
- ROCK SKU: RAB-A22-320B/MVS
- UPC:
- MFG Part #: A22-320B/MVS
$579.00
The RAB Lighting A22-320B/MVS is a 320/280/250W LED area light for pole-mount deployment on parking lots, roadways, and campus perimeter lighting running on 120–277V. CCT is field-selectable at 3000K, 4000K, or 5000K with a Type III distribution, and the fixture outputs up to 44,898 lumens at efficacy up to 153.5 lm/W. DLC Premium listed (ID: S-KPNS31) with a 100,000-hour rated life; the 7-pin receptacle supports photocell and LIGHTCLOUD wireless controls. Black finish.
| Watts | 320/280/250W (Field-Adjustable) |
| Lumens | 34,478–44,898 lm |
| Color Temperature | CCT Selectable (3000K/4000K/5000K) |
| Voltage | 120-277V |
| Input Power | 245.5–323.1W |
| Efficacy | 125.9–153.5 lm/W |
| Rated Life | 100,000 hours |
| Finish | Black |
| DLC Certification | DLC Premium (S-KPNS31) |
