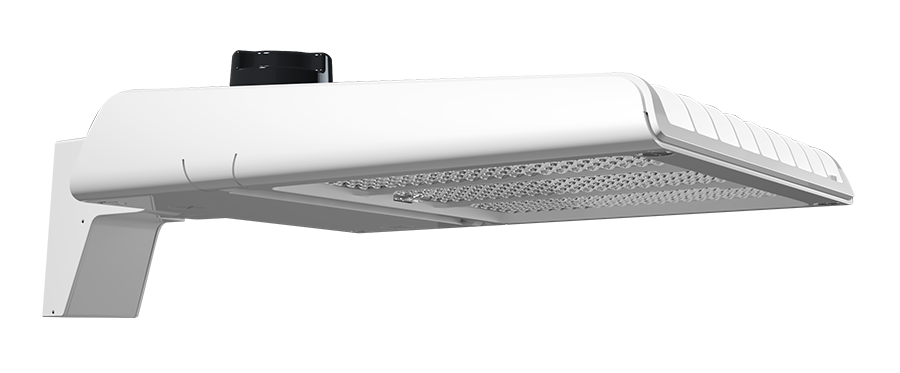

RAB Lighting A22 Area Light, 200/180/160W, CCT Selectable, Type IV Pole Mount, White, A22-4T200W
- ROCK SKU: RAB-A22-4T200W
- UPC:
- MFG Part #: A22-4T200W
The RAB Lighting A22-4T200W is a 200/180/160W LED area light for pole-mounted Type IV distribution on parking lots, roadways, and commercial sites running 120–277V. Selectable CCT (3000/4000/5000K) and three-step wattage control deliver up to 27,463 lumens at efficacy up to 149.8 lm/W, with a 7-pin receptacle (7PRS) for photocell or third-party control integration. DLC Premium listed (ID: S-YPVW8H) with a 100,000-hour rated life; white finish.
| Watts | 200/180/160W (Field-Adjustable) |
| Lumens | 21,262–27,463 lm |
| Color Temperature | CCT Selectable (3000K/4000K/5000K) |
| Voltage | 120-277V |
| Mounting | Type IV Pole Mount, 7-Pin Receptacle |
| Finish | White |
| Rated Life | 100,000 hours |
| DLC | DLC Premium (S-YPVW8H) |
