/ RAB Lighting A22 Area Light, 150/120/100W, CCT Selectable,...

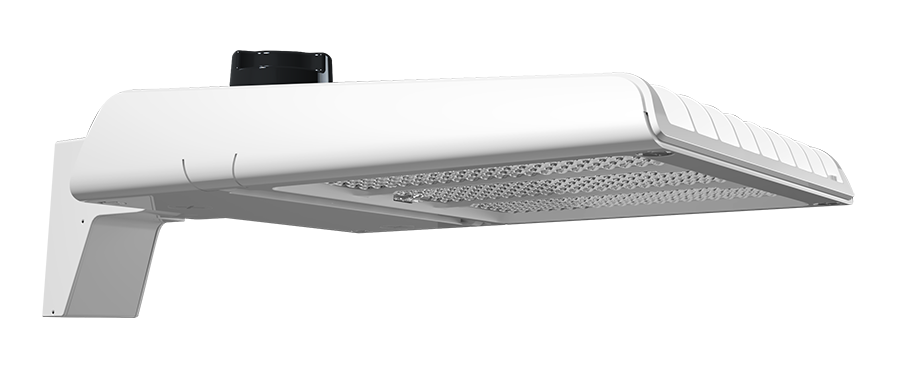

RAB Lighting A22 Area Light, 150/120/100W, CCT Selectable, Type V Pole Mount, 480V, 7-Pin Receptacle, White, A22-5T150W/480
- ROCK SKU: RAB-A22-5T150W/480
- UPC:
- MFG Part #: A22-5T150W/480
The RAB Lighting A22-5T150W/480 is a 150/120/100W LED area light configured for Type V pole-mount installations requiring 480V input, suited for parking lots, campuses, and roadways, finished in white. Output ranges from 15,452 to 22,278 lumens with field-selectable CCT (3000/4000/5000K) and three-step wattage reduction; the 7-pin NEMA receptacle supports wireless controls and photocell integration. DLC Premium listed (ID: S-GLRBF3) with a 100,000-hour rated life. White finish.
| Watts | 150/120/100W (Field-Adjustable) |
| Lumens | 15,452–22,278 lm |
| Color Temperature | CCT Selectable (3000K/4000K/5000K) |
| Voltage | 480V |
| Rated Life | 100,000 hours |
| Finish | White |
| DLC Certification | DLC Premium (S-GLRBF3) |
