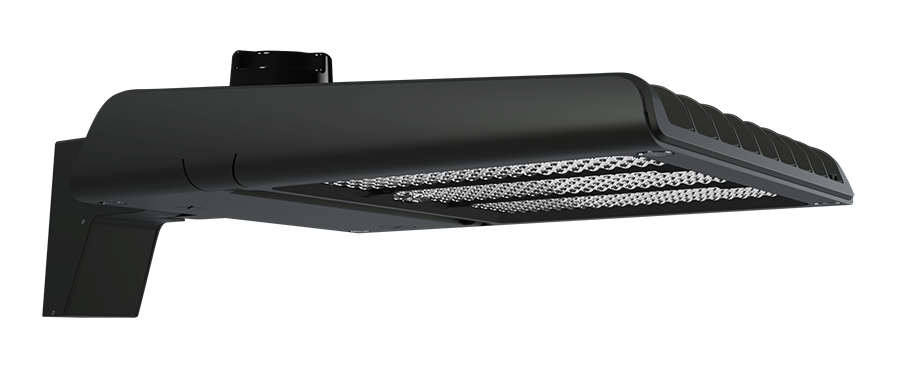

RAB Lighting A22 Area Light, 150/120/100W, CCT Selectable, 480V, Type IV, 7PRS, Bronze, A22-4T150/480
- ROCK SKU: RAB-A22-4T150/480
- UPC:
- MFG Part #: A22-4T150/480
$348.00
The RAB Lighting A22-4T150/480 is a 150/120/100W selectable LED area light rated for 480V operation and designed for pole-mount use on large parking lots, roadways, and commercial campuses requiring Type IV distribution. Output ranges from 14,926 to 21,381 lumens with CCT selectable at 3000K, 4000K, or 5000K, and the fixture includes a 7-pin receptacle (7PRS) for photocell or networked control compatibility. DLC Premium listed (ID: S-7ZSPGQ) with a 100,000-hour rated life. Bronze finish.
| Watts | 150/120/100W (Field-Adjustable) |
| Lumens | 14,926–21,381 lm |
| Color Temperature | CCT Selectable (3000K/4000K/5000K) |
| Voltage | 480V |
| Rated Life | 100,000 hours |
| Finish | Bronze |
| DLC | DLC Premium (S-7ZSPGQ) |
| Mount Type | Type IV Pole Mount, 7-Pin Receptacle |
