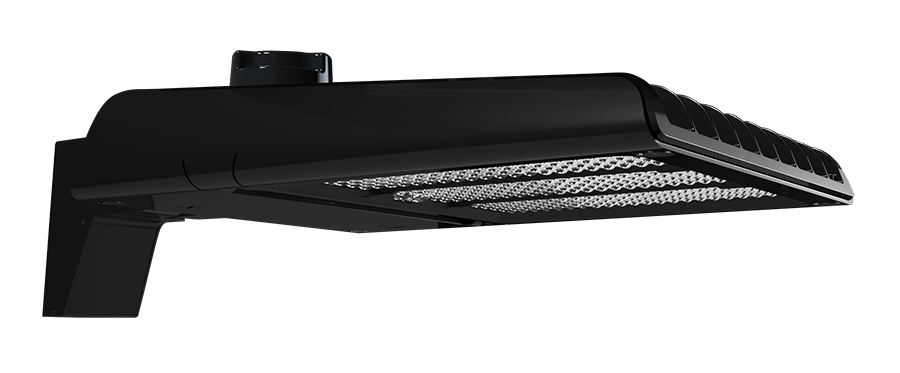

RAB Lighting A22 Area Light, 150/120/100W, CCT Selectable, 480V, Type II Pole Mount, 7PRS, Black, A22-2T150B/480
- ROCK SKU: RAB-A22-2T150B/480
- UPC:
- MFG Part #: A22-2T150B/480
The RAB Lighting A22-2T150B/480 is a field-adjustable 150/120/100W LED area light with Type II pole-mount optics and 7-pin receptacle (7PRS), engineered for 480V parking lot, roadway, and commercial site installations. It delivers up to 22,033 lumens across a CCT-selectable 3000/4000/5000K range with efficacy spanning 138.4–164.6 lm/W. DLC Premium listed (ID: S-YHX835) with a 100,000-hour rated life and LightCloud Blue outdoor controls compatibility. Black finish.
| Watts | 150/120/100W (Field-Adjustable) |
| Lumens | 15,328–22,033 lm |
| Color Temperature | CCT Selectable (3000K/4000K/5000K) |
| Voltage | 480V |
| Efficacy | 138.4–164.6 lm/W |
| Rated Life | 100,000 hours |
| Mount Type | Type II Pole Mount, 7-Pin Receptacle |
| Finish | Black |
| DLC Certification | DLC Premium (S-YHX835) |
