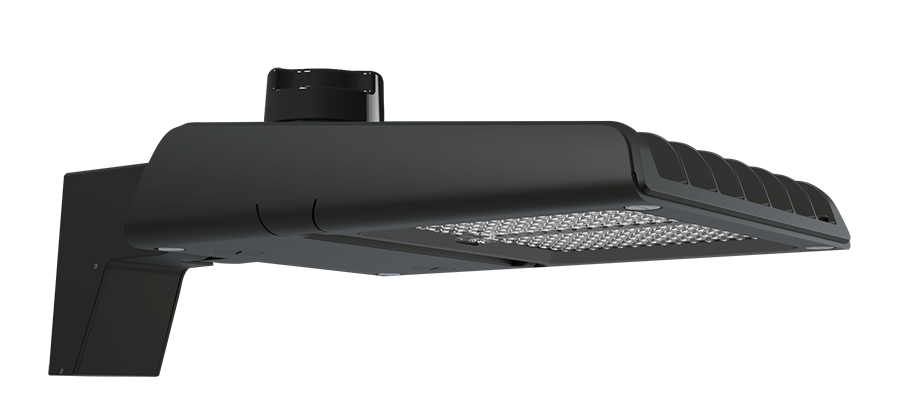

RAB Lighting A22 Area Light, 100/80/60W, CCT Selectable, 480V, Type V Pole Mount, 7-Pin Receptacle, Bronze, A22-5T100/480
- ROCK SKU: RAB-A22-5T100/480
- UPC:
- MFG Part #: A22-5T100/480
The RAB Lighting A22-5T100/480 is a 100/80/60W LED area light built for pole-mounted outdoor installations — parking lots, campuses, and roadways — operating on a dedicated 480V supply. Selectable CCT (3000/4000/5000K) and three wattage steps offer field flexibility, while the 7-pin ANSI receptacle accommodates networked controls or a plug-in photocell. DLC Premium listed (S-BBKKSG) with up to 14,745 lumens, Type V distribution, and a 100,000-hour rated life. Bronze finish.
| Watts | 100/80/60W (Field-Adjustable) |
| Lumens | 9,232–14,745 lm |
| Color Temperature | CCT Selectable (3000K/4000K/5000K) |
| Voltage | 480V |
| Mount Type | Type V Pole Mount |
| Receptacle | 7-Pin |
| Rated Life | 100,000 hours |
| Finish | Bronze |
| DLC | DLC Premium (S-BBKKSG) |
