RAB Lighting A22 Area Light, 100/80/60W, CCT Selectable, 480V, Type IV, MVS, Black, A22-4T100B/480/MVS
- ROCK SKU: RAB-A22-4T100B/480/MVS
- UPC:
- MFG Part #: A22-4T100B/480/MVS
$363.00

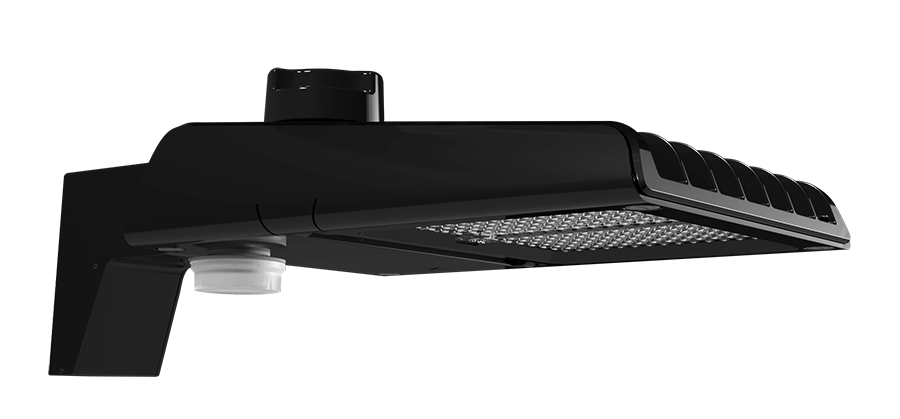

The RAB Lighting A22-4T100B/480/MVS is a 100/80/60W LED area light designed for pole-mount applications including parking lots, roadways, and commercial sites requiring 480V service with a Type IV distribution pattern. Delivering up to 14,300 lumens with field-selectable CCT (3000/4000/5000K) and wattage, it achieves up to 156.3 lm/W efficacy and carries DLC Premium certification (ID: S-87TK38) for utility rebate eligibility. The integrated MVS receptacle enables occupancy or daylight controls, and the 100,000-hour rated life reduces maintenance cycles. Black finish.
| Watts | 100/80/60W (Field-Adjustable) |
| Lumens | 8,965–14,300 lm |
| Color Temperature | CCT Selectable (3000K/4000K/5000K) |
| Voltage | 480V |
| Mounting | Type IV Pole Mount, Receptacle |
| Rated Life | 100,000 hours |
| Finish | Black |
| DLC Certification | DLC Premium (S-87TK38) |
