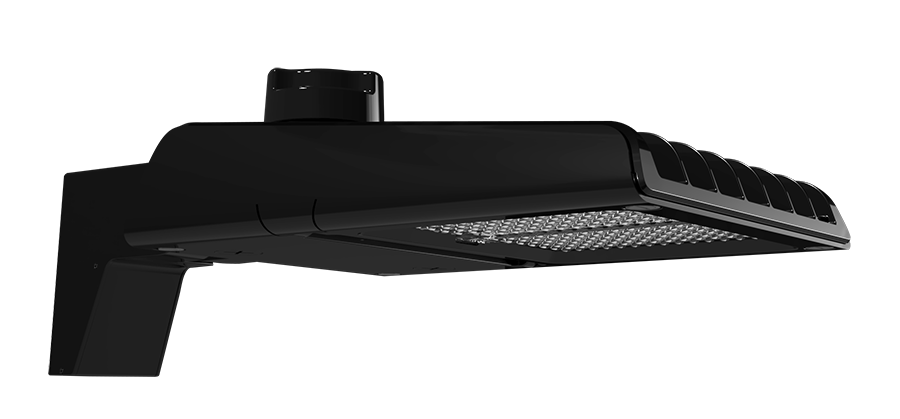

RAB Lighting A22 Area Light, 100/80/60W, CCT Selectable, 480V, Type II Pole Mount, Black, A22-2T100B/480
- ROCK SKU: RAB-A22-2T100B/480
- UPC:
- MFG Part #: A22-2T100B/480
The RAB Lighting A22-2T100B/480 is a 100/80/60W LED area light designed for Type II pole-mount applications on 480V systems such as parking lots, roadways, and site perimeters. Delivering up to 14,503 lumens with field-selectable CCT (3000/4000/5000K) and wattage settings, it offers installation flexibility without stocking multiple SKUs. DLC Premium listed (ID: S-NZX3BD) with a 100,000-hour rated life and up to 158.1 lm/W efficacy. Black finish. LightCloud Blue wireless controls compatible.
| Watts | 100/80/60W (Field-Adjustable) |
| Lumens | 9,075–14,503 lm |
| Color Temperature | CCT Selectable (3000K/4000K/5000K) |
| Voltage | 480V |
| Rated Life | 100,000 hours |
| IP Rating | IP65 |
| Finish | Black |
| DLC | DLC Premium (S-NZX3BD) |
| Mounting | Type II Pole Mount, 7-Pin Receptacle |
