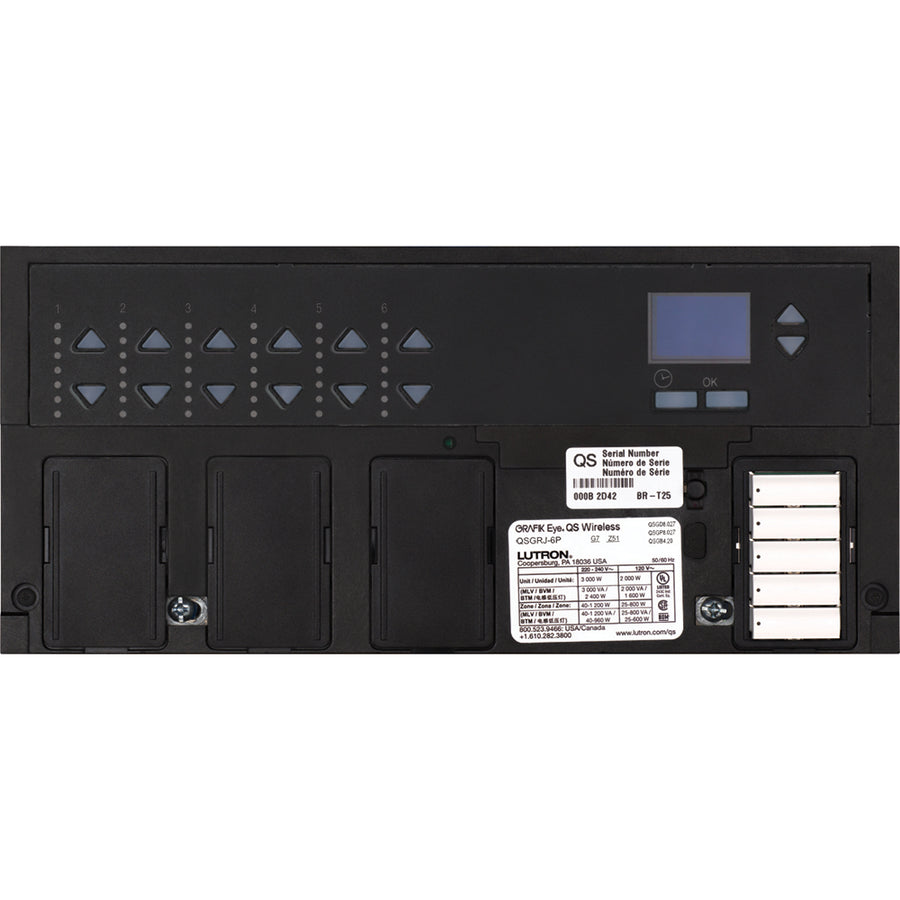

Lutron Grafik Eye QS Wireless Main Unit, 6-Zone, No Faceplates, 120-127V or 200-260V, QSGRJ-6P
- ROCK SKU: LUT-QSGRJ-6P
- UPC: 027557641418
- MFG Part #: QSGRJ-6P
Estimated Lead Time: 32-33 weeks
Product dimensions
-
Width:
3.1 IN
-
Height:
11.1 IN
-
Depth:
5.7 IN
-
Weight:
2.7 LBS
6 zone base unit for GRAFIK Eye QS. Controls up to six zones of light and will operate incandescent, LED/CFL, Tungsten halogen, electronic low-voltage, magnetic low-voltage, metal halide/high pressure sodium switched, neon/cold cathode, and Lutron Tu-Wire electronic fluorescent dimming ballast loads with a continuous Square Law dimming curve or on a full conduction non-dim basis.
| Actuator | Push-button |
| Application | Lighting Control |
| Contact Configuration | N-O |
| Contact Rating | 120, 220 to 240 VAC |
| Enclosure | Plastic |
| Mounting | Surface |
| Operating Temperature | 32 °F to 104 °F |
| Standard | UL, CSA, FCC, IC, SCT, NOM, CEC (title24) |
| Type | Light/shade control unit, 6 zones, no cover, wireless capability |
| Voltage Rating | 120, 220 to 240 |
Product dimensions
-
Width:
3.1 IN
-
Height:
11.1 IN
-
Depth:
5.7 IN
-
Weight:
2.7 LBS
