Lutron Caseta Original In-Wall Smart Dimmer Switch PRO, Neutral Optional, 250W LED or 1000VA, MLV, 120V, Single-Pole/3-Way, PD-10NXD-BL, Black

Estimated Lead Time: 2-3 weeks

Product dimensions

  • Width:

    2.5 IN

  • Height:

    3.75 IN

  • Depth:

    5.6 IN

  • Weight:

    0.35 LBS

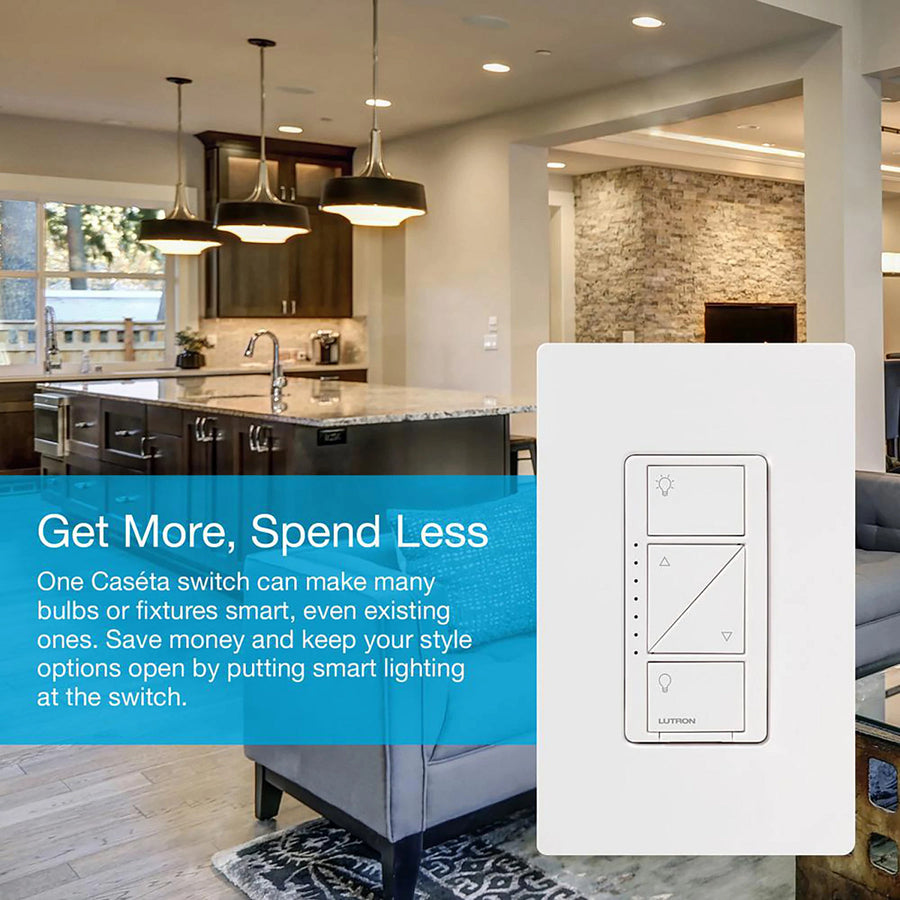

Controls 250 W LED (screw-base), 1000 W incandescent/halogen, 1000 VA (800 W) magnetic low-voltage, 520 W Hi-lume 1 percent 2-wire LED driver, or 5 A Tu-Wire fluorescent ballast loads. Simple, intuitive design with on, off and raise/lower buttons. Provides true dimming from each location with Pico wireless remotes. Offers reliable dimming of dimmable LEDs/CFLs, as well as halogens and incandescents


  • Includes: One (1) Lutron Caseta in-wall dimmer switch PRO; Gloss finish
  • Works with up to 250W of dimmable LED or 1000W of MLV/Incandescent/Halogen; 120V
  • Neutral Optional for LED, CFL, and Incandescent/Halogen; Neutral Required for ELV, MLV, dimmable ballasts, and Hi-Lume 1% LED drivers, and Lutron power boosters

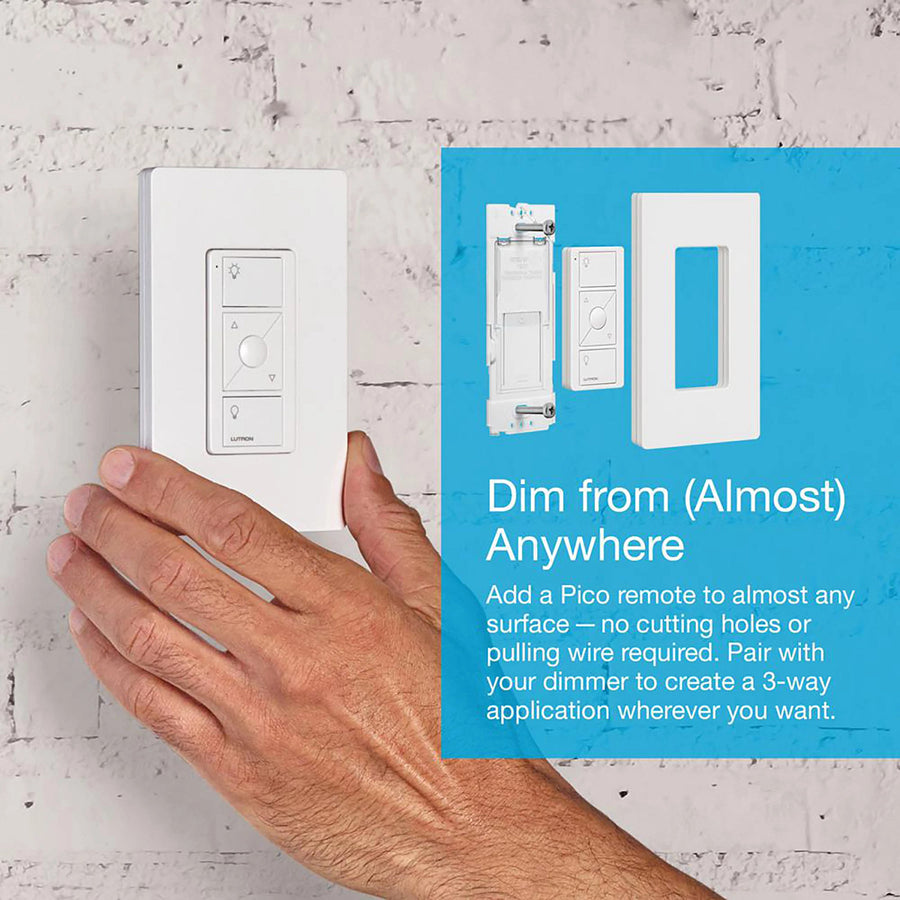

  • Dim from up to 10 locations by pairing the dimmer to a mountable Lutron Pico remote (PJ2-WALL-WH-L01 sold separately); Can be wired to existing 3-way switches (CA-3PS-XX)

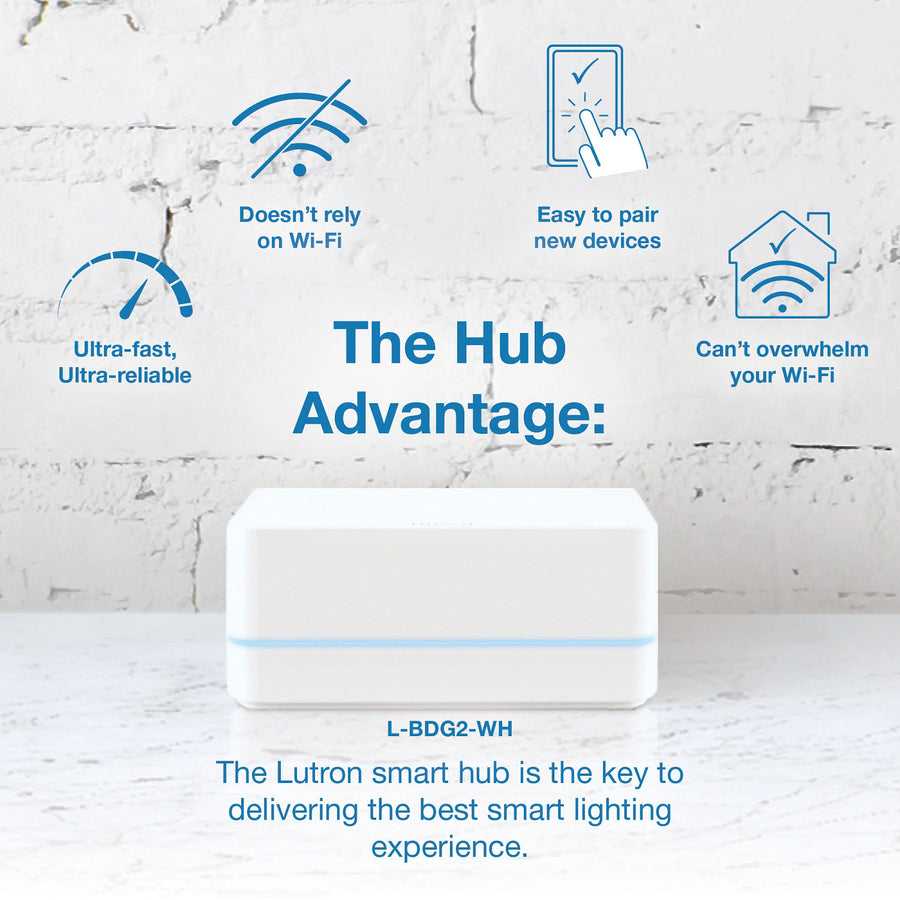

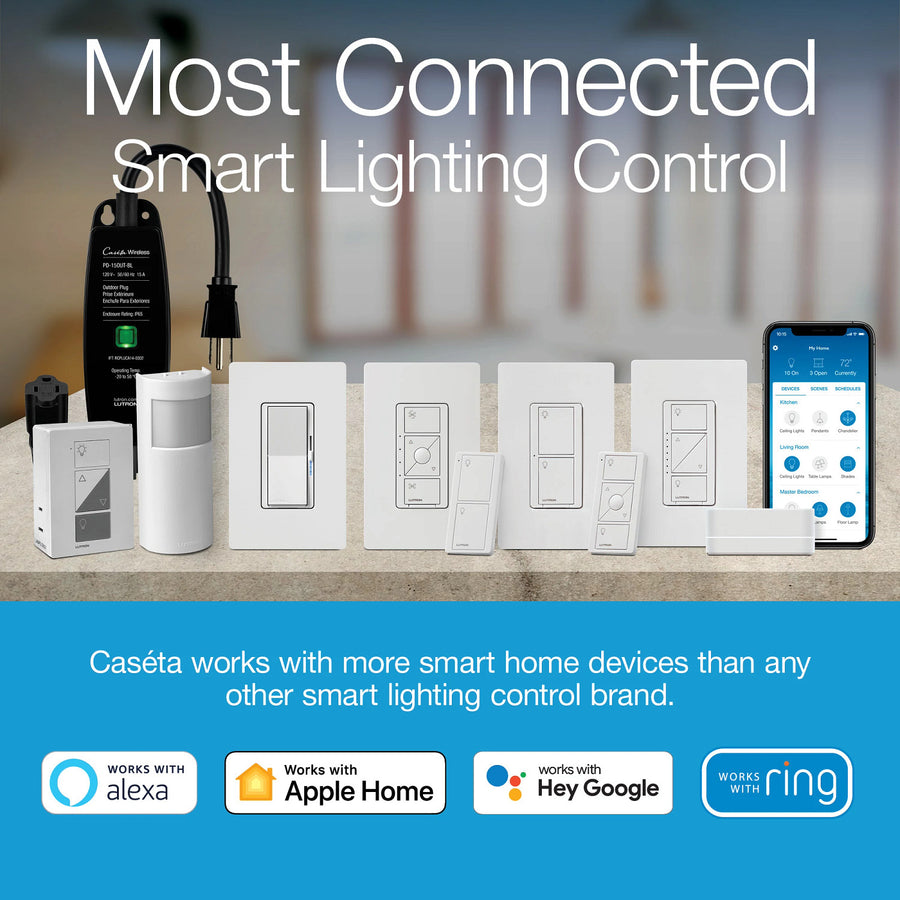

  • Add a Lutron Smart Hub to connect with Alexa, Apple Home, the Google Assistant, Ring, Serena Shades, SONOS, and more
  • Lutron Clear Connect does not rely on wi-fi and is ultra-fast and ultra-reliable (avoid repeat service calls); 60ft direct line-of-sight or 30ft through walls of a Lutron Smart Hub
  • Pair up to ten (10) Lutron Pico Remotes or Caseta motion sensors to one (1) Lutron Caseta dimmer switch (limitations reflect when no Lutron Smart Hub installed)

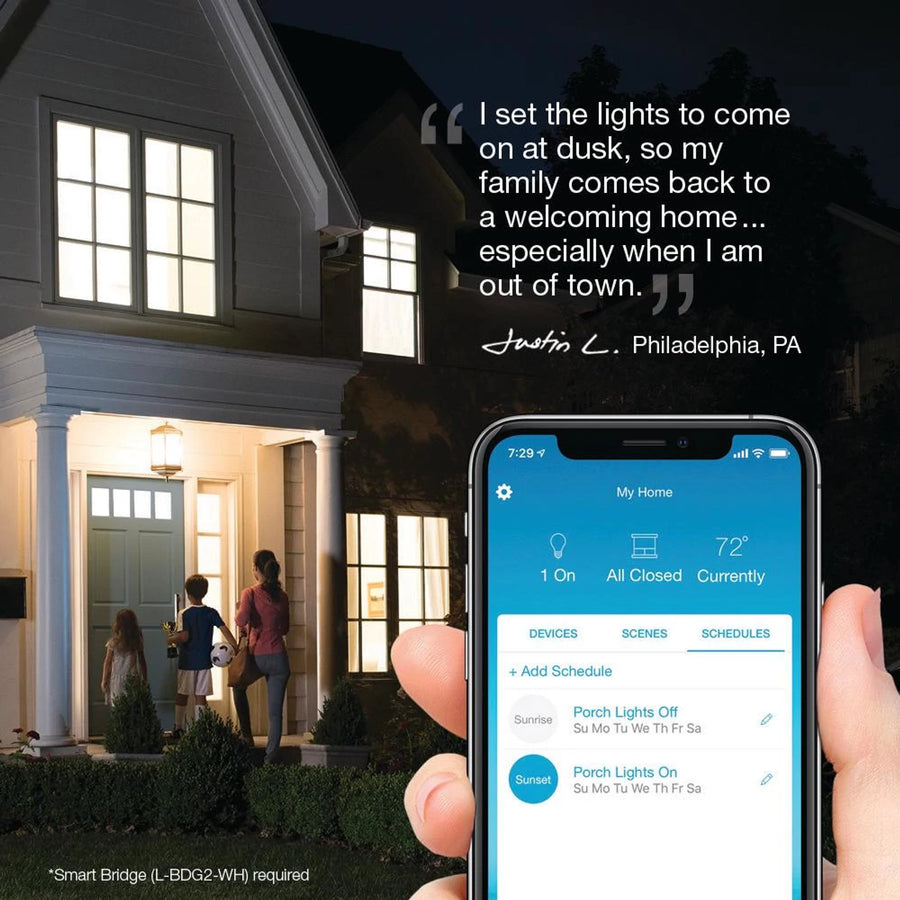

  • Control at the wall, with a Pico smart remote, with a phone, or voice assistant (Lutron Smart Hub, L-BDG2-WH required for phone and voice assistant control)

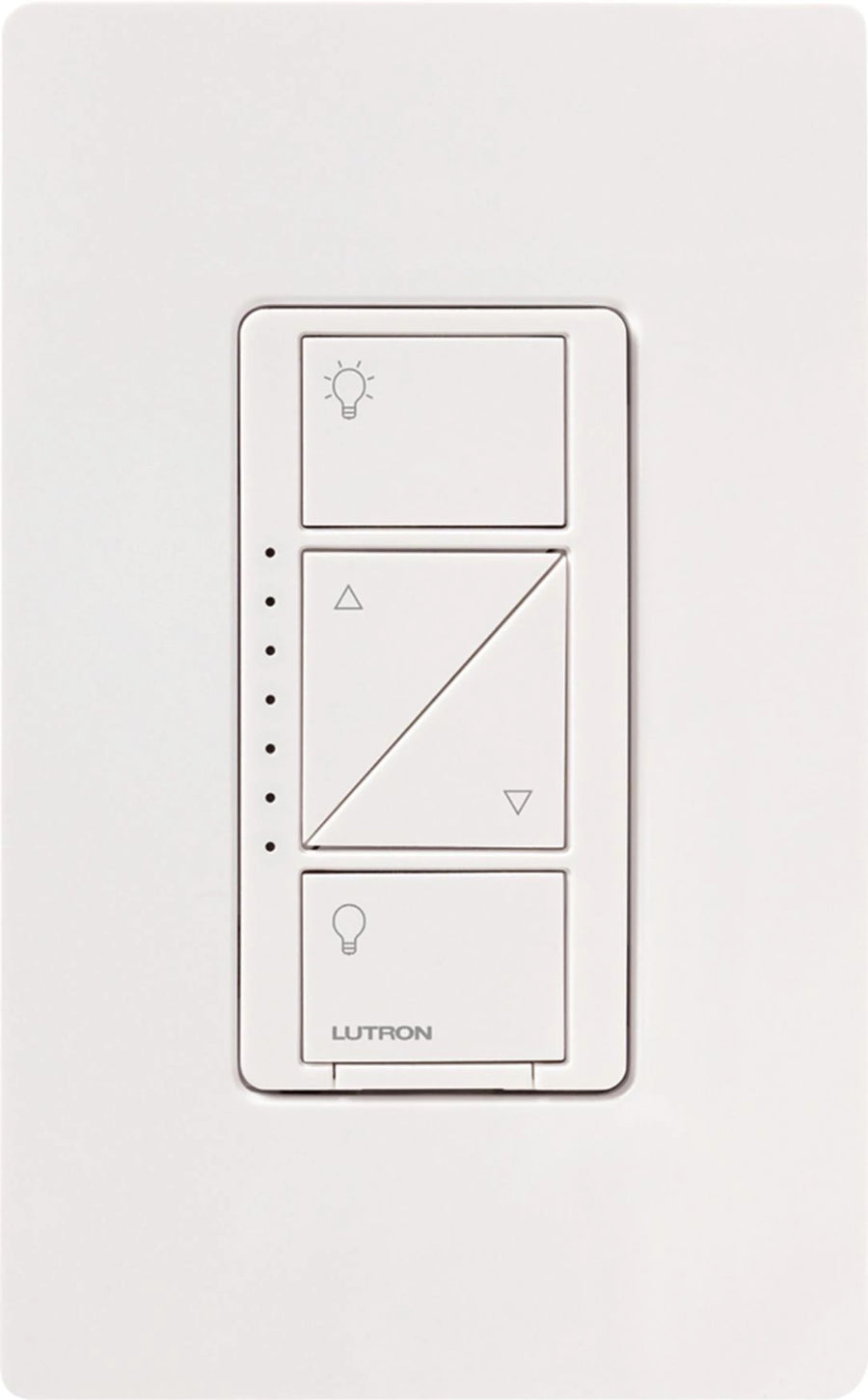

  • Pairs perfectly with Lutron Claro wall plates for consistent color matching (wall plates sold separately)
Switch Type Push Button
Family Color White
Connection Type Wire Leads
Application Lighting Control
Frequency Rating, Minimum 50
Face Material Metal;Plastic
Voltage Rating 120
Type Wireless in-wall dimmer, multi-location/3-way/single-pole
Standard cUL, NOM, FCC, IFTEL, NEMA
Operating Temperature, Maximum 104 °F
Operating Temperature, Minimum 32 °F
Wattage 1000 W

Product dimensions

  • Width:

    2.5 IN

  • Height:

    3.75 IN

  • Depth:

    5.6 IN

  • Weight:

    0.35 LBS
