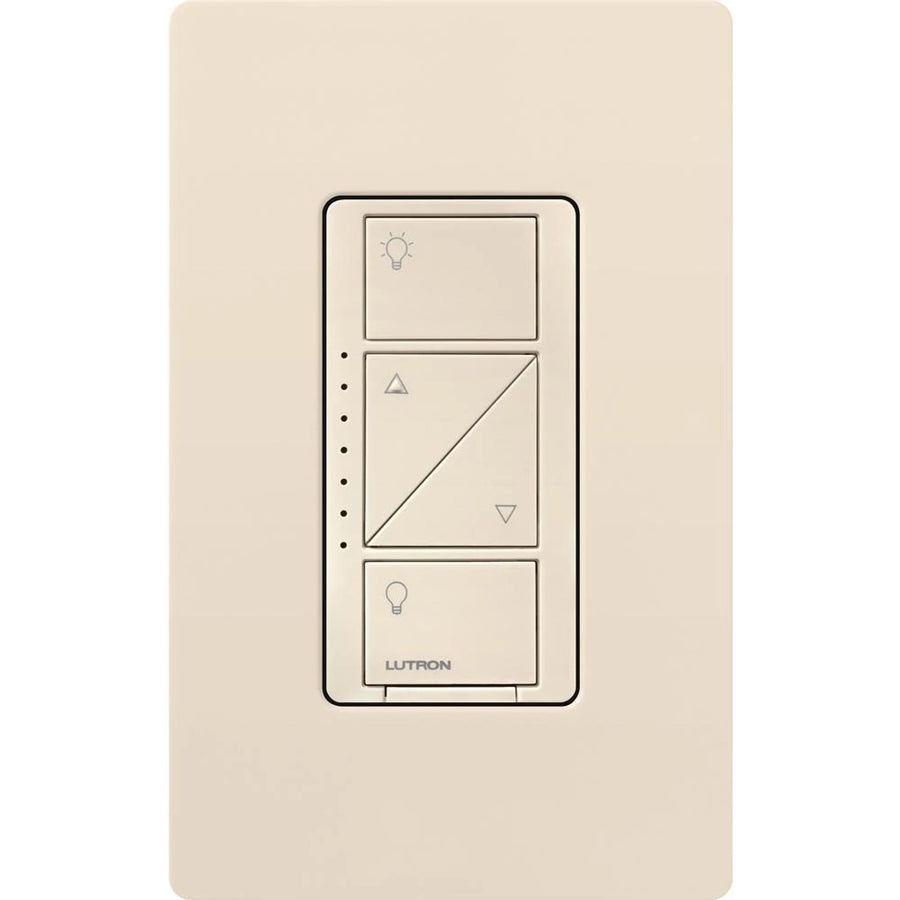

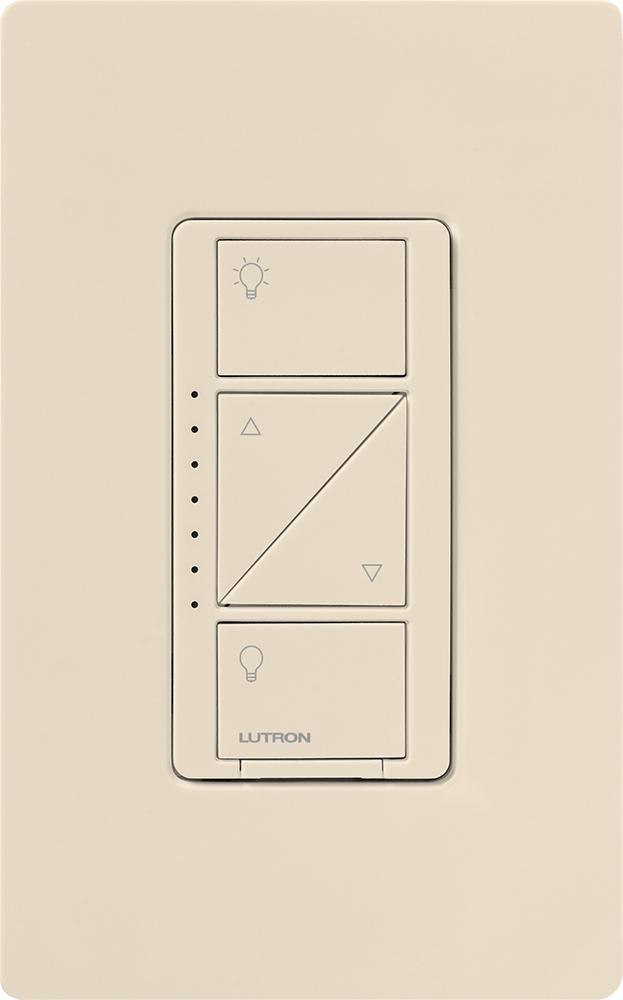

Lutron Caseta Original In-Wall Smart Dimmer Switch PRO, Neutral Optional, 250W LED or 1000VA, MLV, 120V, Single-Pole/3-Way, PD-10NXD-LA, Light Almond

$150.00

$120.00

Estimated Lead Time: 6-7 weeks

Product dimensions

  • Width:

    2.1 IN

  • Height:

    3.4 IN

  • Depth:

    5.6 IN

  • Weight:

    0.35 LBS

Controls 250 W LED (screw-base), 1000 W incandescent/halogen, 1000 VA (800 W) magnetic low-voltage, 520 W Hi-lume 1 percent 2-wire LED driver, or 5 A Tu-Wire fluorescent ballast loads. Simple, intuitive design with on, off and raise/lower buttons. Provides true dimming from each location with Pico wireless remotes. Offers reliable dimming of dimmable LEDs/CFLs, as well as halogens and incandescents


  • Includes: One (1) Lutron Caseta in-wall dimmer switch PRO; Gloss finish
  • Works with up to 250W of dimmable LED or 1000W of MLV/Incandescent/Halogen; 120V
  • Neutral Optional for LED, CFL, and Incandescent/Halogen; Neutral Required for ELV, MLV, dimmable ballasts, and Hi-Lume 1% LED drivers, and Lutron power boosters
  • Dim from up to 10 locations by pairing the dimmer to a mountable Lutron Pico remote (PJ2-WALL-WH-L01 sold separately); Can be wired to existing 3-way switches (CA-3PS-XX)
  • Add a Lutron Smart Hub to connect with Alexa, Apple Home, the Google Assistant, Ring, Serena Shades, SONOS, and more
  • Lutron Clear Connect does not rely on wi-fi and is ultra-fast and ultra-reliable (avoid repeat service calls); 60ft direct line-of-sight or 30ft through walls of a Lutron Smart Hub
  • Pair up to ten (10) Lutron Pico Remotes or Caseta motion sensors to one (1) Lutron Caseta dimmer switch (limitations reflect when no Lutron Smart Hub installed)
  • Control at the wall, with a Pico smart remote, with a phone, or voice assistant (Lutron Smart Hub, L-BDG2-WH required for phone and voice assistant control)
  • Pairs perfectly with Lutron Claro wall plates for consistent color matching (wall plates sold separately)
Switch Type Push Button
Application Lighting Control
Decorative Color Light Almond
Operating Temperature, Maximum 104 °F
Operating Temperature, Minimum 32 °F
Face Material Metal;Plastic
Connection Type Wire Leads
Frequency Rating, Minimum 50
Standard cUL, NOM, FCC, IFTEL, NEMA
Voltage Rating 120
Type Wireless in-wall dimmer, multi-location/3-way/single-pole
Wattage 1000 W

Product dimensions

  • Width:

    2.1 IN

  • Height:

    3.4 IN

  • Depth:

    5.6 IN

  • Weight:

    0.35 LBS
