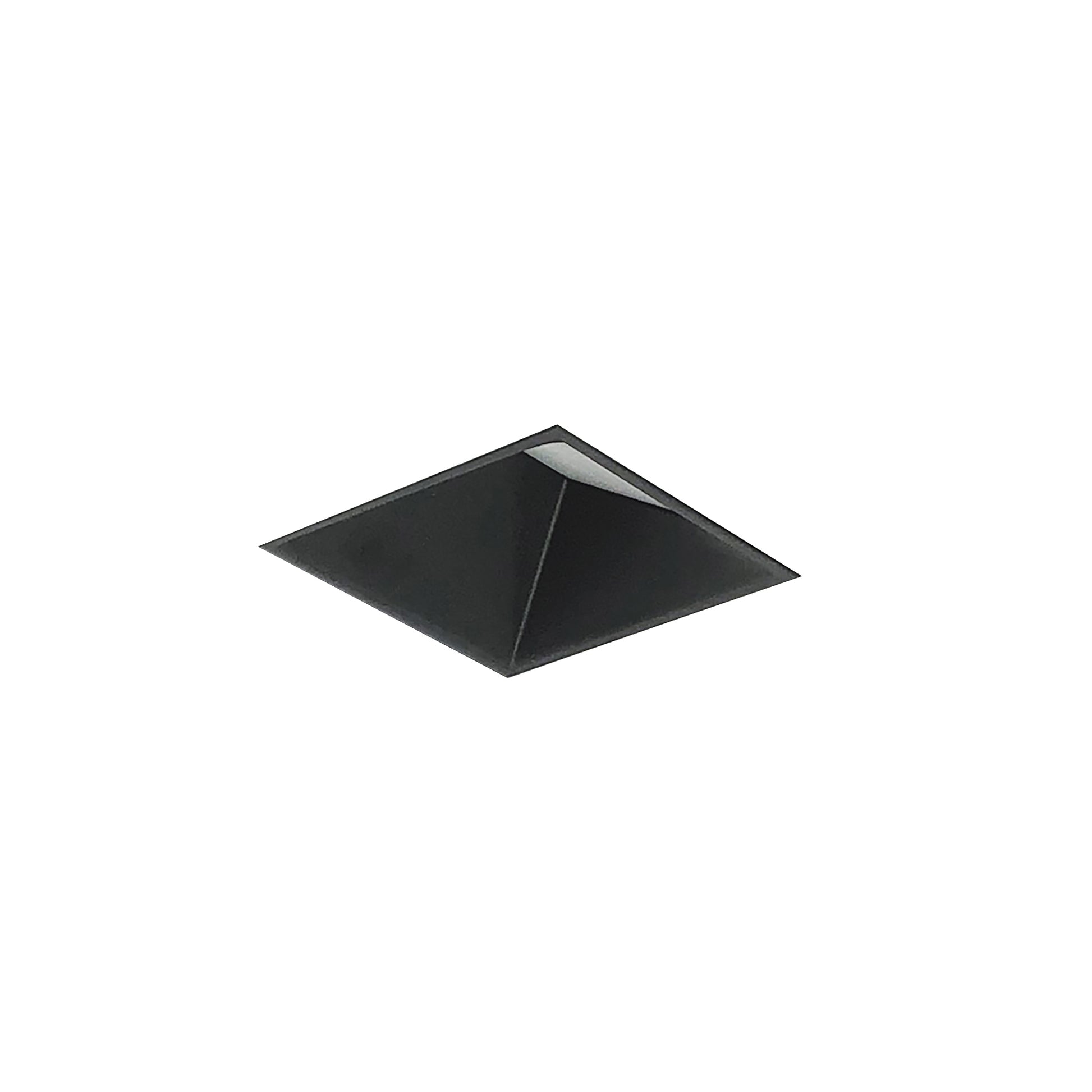

Nora Lighting Iolite MLS 1-Head Trimless Reflector Kit, 3000K, Black Wall Wash, NMIOTL-11-NF-W-30X-10-B
- ROCK SKU: NOR-NMIOTL-11-NF-W-30X-10-B
- UPC: 732180863310
- MFG Part #: NMIOTL-11-NF-W-30X-10-B
The Nora Lighting NMIOTL-11-NF-W-30X-10-B is a single-head Iolite MLS trimless reflector kit that delivers 1000 lumens per head of 3000K at 90+ CRI from a 12W LED engine. Each head includes three field-changeable optics drawn from 10° spot, 25° spot, 38° narrow flood, and 60° flood beam options, so you can tune the beam spread on site. The black reflector seats flush in a trimless mud-plate that screws directly to the drywall for a clean, frameless aperture — no visible trim ring. The IC-rated 0.0475" galvanized-steel housing installs on two adjustable bar hangers (13-7/8" to 25") over a pre-wired 40 cubic-inch junction box for new construction. Powered by a 120-277V driver with Triac, ELV, and 0-10V dimming, it is cULus Listed for damp locations, certified to California Title 24 JA8-2025, and backed by a 5-year limited warranty.
| Number of Heads | 1 |
| Wattage | 12W |
| Lumens | 1000lm |
| Color Temperature | 3000K |
| CRI | 90+ CRI |
| Beam Optics | 10° Spot / 25° Spot / 38° Narrow Flood / 60° Flood (three field-changeable per head) |
| Reflector Style | Wall Wash |
| Trim Style | Trimless (mud-plate, drywall flush) |
| Input Voltage | 120-277V |
| Dimming | Triac/ELV/0-10V |
| Finish | Black |
| Housing | IC-rated, 0.0475" galvanized steel |
| Mounting | Two adjustable bar hangers (13-7/8" to 25") |
| Junction Box | Pre-wired, 40 cu. in. |
| Location Rating | Damp (cULus Listed) |
| Compliance | California Title 24 JA8-2025 |
| Warranty | 5-Year Limited |
