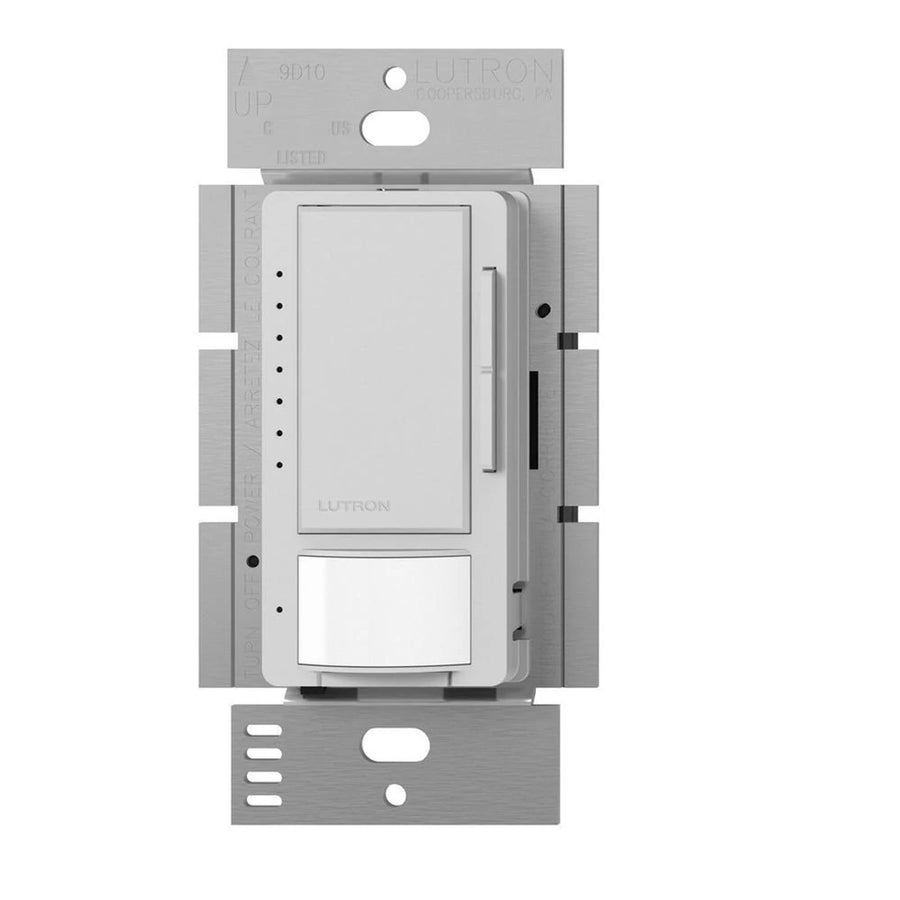

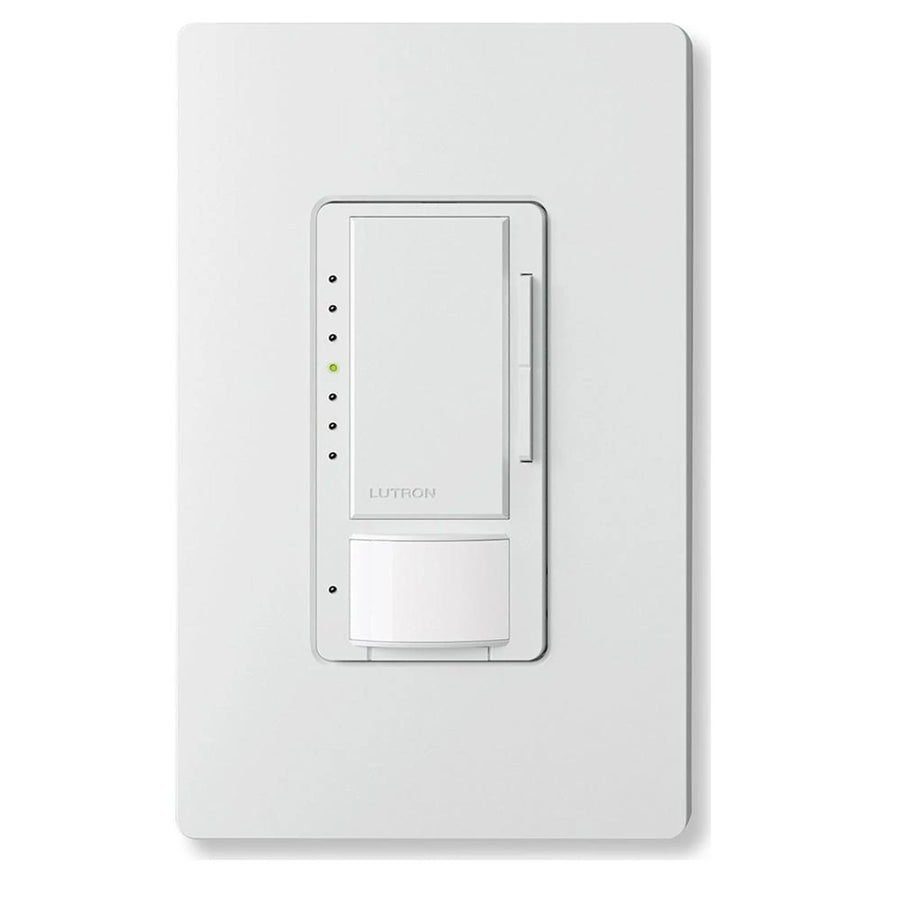

Lutron Maestro LED+ Motion Sensor Dimmer Switch, Vacancy Only, 150W LED, 120V, No Ground Required, Single/Multi-Location, MSCL-OP153M-PD, Palladium
- ROCK SKU: LUT-MSCL-VP153M-PD
- UPC: 00784276055024
- MFG Part #: MSCL-VP153M-PD
$0.00
Estimated Lead Time: 2-3 weeks
Product dimensions
-
Width:
2.30 IN
-
Height:
4.50 IN
-
Depth:
2.30 IN
-
Weight:
0.35 LBS
["Maestro LED+ passive infrared vacancy sensor that automatically control the lights in an area in palladium
- Includes (1) Maestro LED+ Motion Sensor/Dimmer Switch
- Vacancy Only; Satin Finish
- Rated for 150W dimmable LED or 600W Incandescent/Halogen bulbs; No Neutral or Ground required
- Screw Terminal or Push-in Installation; 120V
- Single Pole/Multi-location dimming with Lutron Maestro Companion dimmers (MA-R/MSC-AD); Compatible with an existing 3-way switch
- Features passive infrared (PIR) motion detection with exclusive Lutron XCT Technology for fine motion detection
- which is 2-3x better at picking up motion than other manufacturers
- 180-degree sensor field of view (900 sq ft major motion & 400 sq ft minor motion coverage); Tamper-resistant lens
- Easy button programming mode available to customize dimmer and sensor functions such as timeout
- fade-off rate
- and sensitivity
| Load | 600 W incandescent/halogen/140 W CFL/LED |
| Environmental Conditions | 0 to 90% humidity, non-condensing. Indoor use only. |
| Enclosure | Plastic |
| Body | Plastic |
| Decorative Color | Palladium |
| Application | Lighting Control |
| Operating Temperature, Maximum | 104.000000000000000 |
| Operating Temperature, Minimum | 32.000000000000000 |
| Sensing Range, Maximum | 900 |
| Sensing Range, Minimum | 400 |
| Sensor | Yes |
| Supply Voltage | 120 |
| Standard | UL, cUL, Title 20/24 certified |
| Type | Vacancy sensor dimmer, multi-location/3-way/single-pole |
| Mounting | Wallbox |
Product dimensions
-
Width:
2.30 IN
-
Height:
4.50 IN
-
Depth:
2.30 IN
-
Weight:
0.35 LBS
