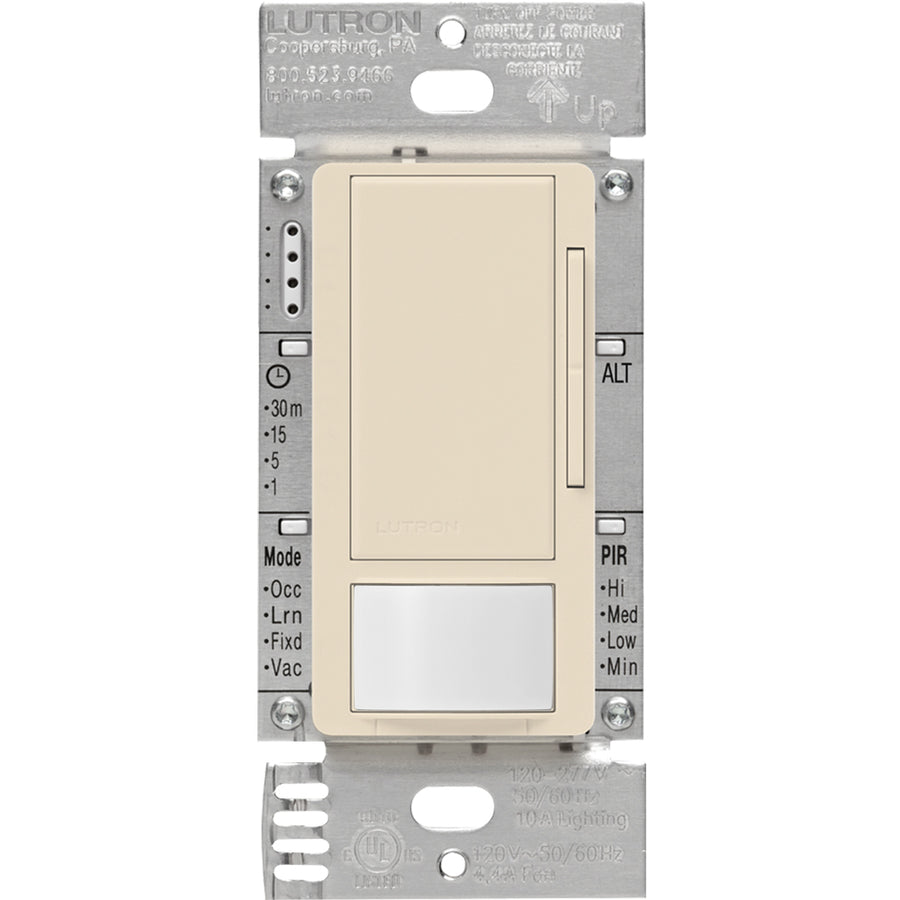

Lutron Maestro 0-10V Vacancy Sensor Dimmer Switch, 8A, Neutral Optional, 120-277V, Single Pole/Multi-Location, MS-Z101-V-LA, Light Almond
- ROCK SKU: LUT-MS-Z101-V-LA
- UPC: 784276100144
- MFG Part #: MS-Z101-V-LA
$120.00
$90.00
Estimated Lead Time: 18-19 weeks
Product dimensions
-
Width:
2.3 IN
-
Height:
3.4 IN
-
Depth:
4.6 IN
-
Weight:
0.3 LBS
Passive infrared sensors that automatically control the lights in an area. These sensors detect heat from occupants moving within an area to determine when the space is occupied. Combines a Maestro 0-10 V dimmer with an vacancy sensor. Controls 1-10 VDC electronic fluorescent ballast or LED driver load types. Passive infrared motion detection with exclusive Lutron XCT Technology for fine motion detection. 180 degree sensor field-of-view. Up to 30 ft x 30 ft (9 m x 9 m) [900 ft2 (81 m2)] major motion coverage and 20 ft x 20 ft (6 m x 6 m) [400 ft2 (36 m2)] minor motion coverage. Adjustable timeout (1, 3, 5, 15, or 30 minutes). Adjustable settings for auto-on light level (occupied level): 100 %, 50 %, last light level, or locked preset light level. Adjustable sensitivity level: High, med, low, min. Off warning fades lights to off over a period of 10 seconds. Advanced Maestro dimmer features available (locked preset, fade-to-on, and fade-to-off, etc.). Adaptive switching algorithm for extended relay life. Smart ambient light detection (ALD). Works with a single standard mechanical 3-way switch or up to 9 companion dimmers/switches. High-end trim and low-end trim to adjust maximum and minimum light levels. Selectable dimming curve-linear or square law. Miswire and incompatible load alert
- Includes (1) Maestro 0-10V Motion Sensor/Dimmer Switch, Vacancy Only; Gloss Finish
- Rated for all drivers that provide a source current up to 8A switching LED driver/4.4A Fan (1/6 HP) with a 50mA max sink current; Neutral Optional
- Screw Terminal and Wire-Lead Installation; 120V
- Single Pole/Multi-location switching with Lutron Maestro Companion switches (MA-AS); Compatible with an existing 3-way switch
- Features passive infrared (PIR) motion detection with exclusive Lutron XCT Technology for fine motion detection, which is 2-3x better at picking up motion than other manufacturers
- 180-degree sensor field of view (900 sq ft major motion & 400 sq ft minor motion coverage); Tamper-resistant lens
- Customize both dimmer and sensor functions with easy to read programming buttons directly on dimmer sensor
- Complies with Title 24 requirements for multi-level lighting control
- Available in 10+ colors
- Pairs perfectly with Lutron Claro wall plates for consistent color matching (wall plates are sold separately)
| Application | Lighting Control |
| Body | Plastic |
| Load | 8 A/0-10VDC |
| Enclosure | Plastic |
| Environmental Conditions | 0 to 90% humidity, non-condensing. Indoor use only. |
| Supply Voltage | 120 to 277 |
| Standard | UL, cUL, Title 20/24 certified |
| Type | Vacancy sensor dimmer, multi-location/3-way/single-pole, 0-10 V |
| Sensing Range, Maximum | 900 |
| Sensing Range, Minimum | 400 |
| Operating Temperature, Maximum | 104 °F |
| Operating Temperature, Minimum | 32 °F |
| Sensor | Yes |
| Mounting | Wallbox |
Product dimensions
-
Width:
2.3 IN
-
Height:
3.4 IN
-
Depth:
4.6 IN
-
Weight:
0.3 LBS
