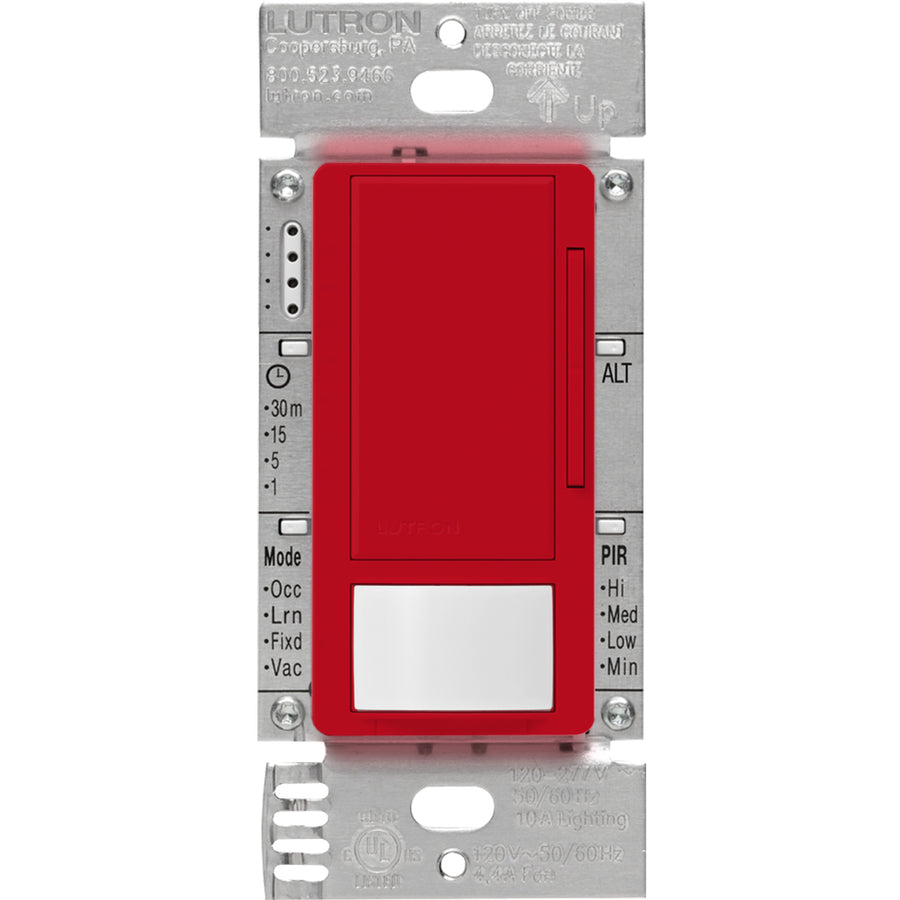

Lutron Maestro 0-10V Motion Sensor/Dimmer Switch, 8A, Neutral Optional, 120-277V, Single Pole/Multi-Location, MS-Z101-HT, Hot
- ROCK SKU: LUT-MS-Z101-HT
- UPC: 784276100083
- MFG Part #: MS-Z101-HT
$130.00
$97.00
Estimated Lead Time: 8-9 weeks
Product dimensions
-
Width:
2.4 IN
-
Height:
3.4 IN
-
Depth:
4.5 IN
-
Weight:
0.45 LBS
Includes (1) Maestro 0-10V Motion Sensor/Dimmer Switch; Gloss Finish
- Rated for all drivers that provide a source current up to 8A switching LED driver/4.4A Fan (1/6 HP) with a 50mA max sink current; Neutral Optional
- Screw Terminal and Wire-Lead Installation; 120V
- Single Pole/Multi-location switching with Lutron Maestro Companion switches (MA-AS); Compatible with an existing 3-way switch
- Features passive infrared (PIR) motion detection with exclusive Lutron XCT Technology for fine motion detection, which is 2-3x better at picking up motion than other manufacturers
- 180-degree sensor field of view (900 sq ft major motion & 400 sq ft minor motion coverage); Tamper-resistant lens
- Customize both dimmer and sensor functions with easy to read programming buttons directly on dimmer sensor
- Complies with Title 24 requirements for multi-level lighting control
- Smart Ambient Light Detection (ALD) can be programmed so lights stay off if enough light is present in the room
- Available in 10+ colors; Pairs perfectly with Lutron Claro wall plates for consistent color matching (wall plates are sold separately)
| Enclosure | Plastic |
| Body | Plastic |
| Standard | UL, cUL, Title 20/24 certified |
| Sensor | Yes |
| Sensing Range, Maximum | 900 |
| Sensing Range, Minimum | 400 |
| Environmental Conditions | 0 to 90% humidity, non-condensing. Indoor use only. |
| Load | 8 A/0-10VDC |
| Operating Temperature, Maximum | 104 °F |
| Operating Temperature, Minimum | 32 °F |
| Application | Lighting Control |
| Type | Occupancy/Vacancy sensor dimmer, multi-location/3-way/single-pole, 0-10 V |
| Supply Voltage | 120 to 277 |
| Mounting | Wallbox |
