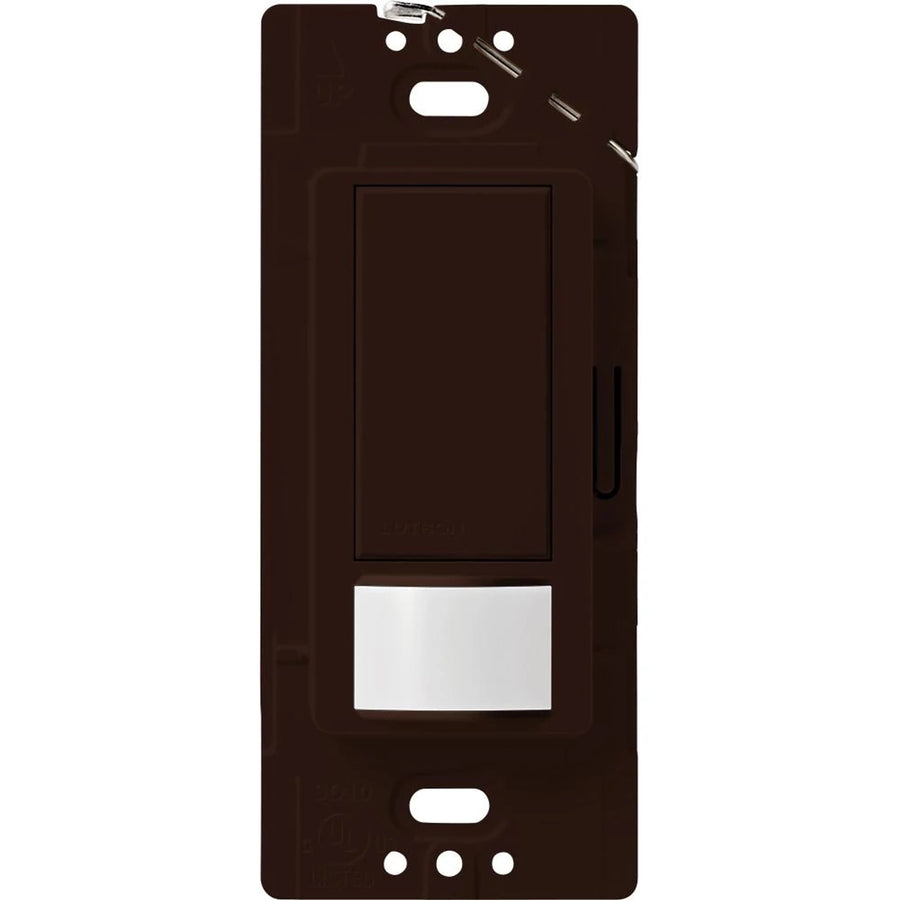

Lutron Maestro Motion Sensor Switch, Vacancy Only, Ground or Neutral Required, 2A Lighting, 120V, Single Pole, MS-VPS2-BR, Brown
- ROCK SKU: LUT-MS-VPS2-BR
- UPC: 027557982870
- MFG Part #: MS-VPS2-BR
$31.10
$18.13
Estimated Lead Time: 2-3 weeks
Product dimensions
-
Width:
2.3 IN
-
Height:
2.3 IN
-
Depth:
4.5 IN
-
Weight:
0.25 LBS

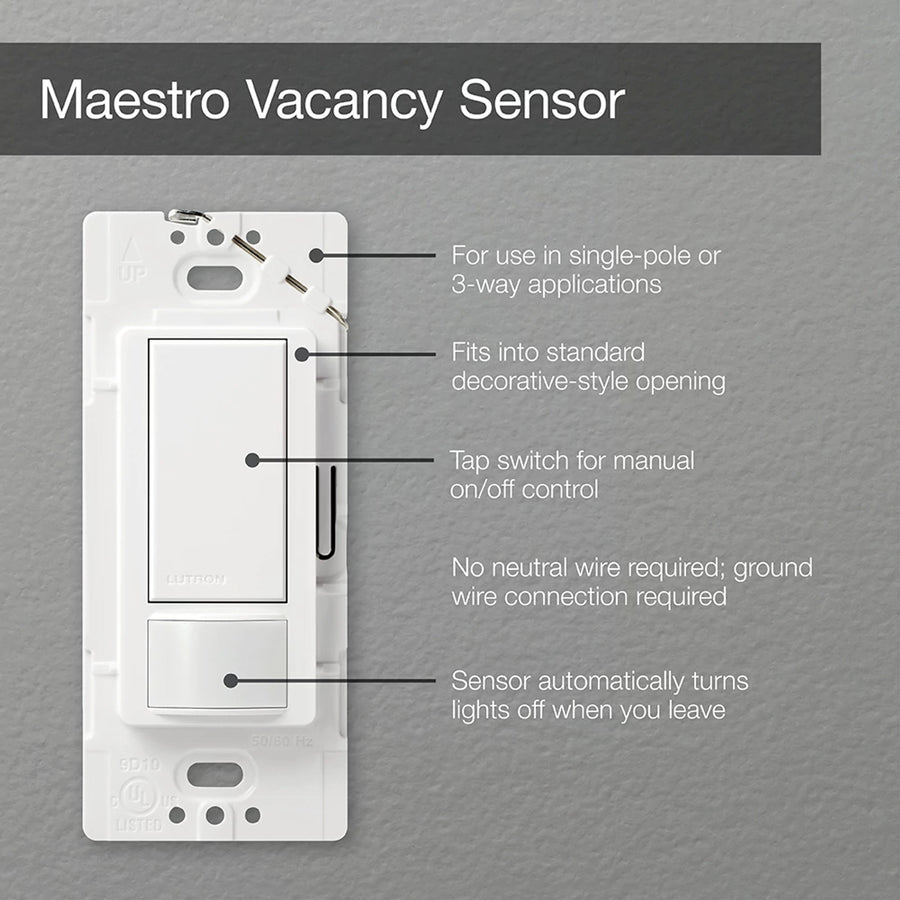

Combines a Maestro switch with a passive infrared occupancy sensor. Detects the heat from occupants moving within an area to determine whether the space is occupied. Based on the feedback from the sensor, the occupancy sensing switch will adjust the load accordingly. Passive infrared sensors with exclusive Lutron XCT Technology for fine motion detection. 180 degree sensor field-of-view. Up to 30 ft x 30 ft (9 m x 9 m) [900 ft2 (81 m2)] major motion coverage and 20 ft x 20 ft (6 m x 6 m) [400 ft2 (36 m2)] minor motion coverage. Meets CA Title 24 requirements. Adjustable timeout (1, 5, 15, or 30 minutes) and high/low sensitivity adjustment. Occupancy sensing switch loads: incandescent, halogen, ELV, MLV, CFL, LED, magnetic fluorescent, electronic fluorescent, and fan. Ground wire required.
- Includes (1) Lutron Maestro 2A Motion Sensor Switch, Vacancy Only; Gloss Finish
- Rated to work with up to 2A lighting; 120V
- Single Pole only
- Wire-Lead installation; Ground or Neutral Required
- Features passive infrared (PIR) motion detection with exclusive Lutron XCT Technology for fine motion detection, which is 2-3x better at picking up motion than other manufacturers
- 180-degree sensor field of view (900 sq ft major motion & 400 sq ft minor motion coverage); Tamper-resistant lens
- Smart Ambient Light Detection (ALD) can be programmed so lights stay off if enough natural light is present in the room
- Easy button programming to customize timeout, sensor mode, or sensitivity
- Complies with Title 20/24 Section 110.9 for “automatic shutoff”

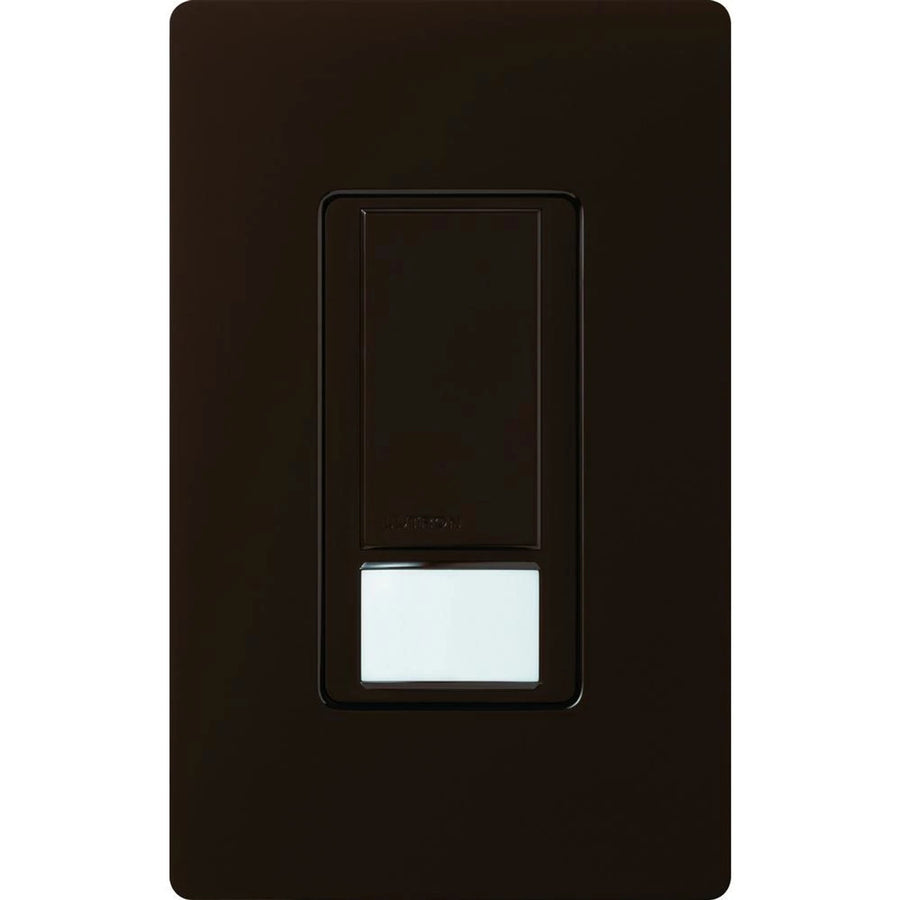

- Available in 10+ colors; Pairs perfectly with Lutron Claro wall plates for consistent color matching (wall plates are sold separately)
| Application | Lighting Control |
| Body | Plastic |
| Enclosure | Plastic |
| Load | 2 |
| Environmental Conditions | 0 to 90% humidity, non-condensing. Indoor use only. |
| Type | Vacancy sensor switch, single-pole |
| Supply Voltage | 120 |
| Standard | UL, cUL, NOM, CA Title 24 compliant |
| Sensor | Passive infrared motion detection with dependable Lutron XCT technology |
| Sensing Range, Maximum | 900 |
| Sensing Range, Minimum | 400 |
| Operating Temperature, Maximum | 104 °F |
| Operating Temperature, Minimum | 32 °F |
| Mounting | Wallbox |
Product dimensions
-
Width:
2.3 IN
-
Height:
2.3 IN
-
Depth:
4.5 IN
-
Weight:
0.25 LBS
