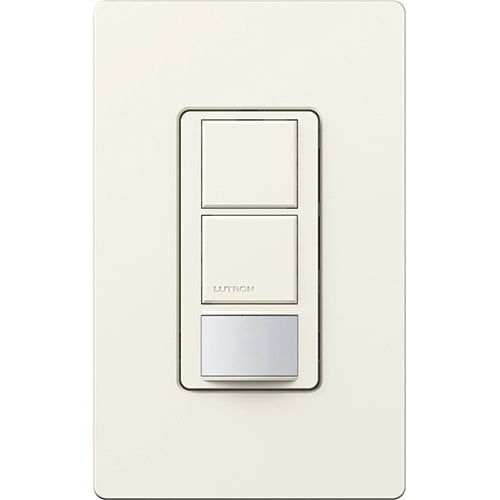

Lutron Maestro Partial-On Dual Circuit Motion Sensor Switch, 6A Light, 120-277V, Single Pole, Ground or Neutral Required, MS-OPS6-DDV-BI, Biscuit
- ROCK SKU: LUT-MS-PPS6-DDV-BI
- UPC: 784276069700
- MFG Part #: MS-PPS6-DDV-BI
$106.60
$62.16
Estimated Lead Time: 3-4 weeks
Product dimensions
-
Width:
2.3 IN
-
Height:
2.3 IN
-
Depth:
4.5 IN
-
Weight:
0.26 LBS
Combines two switches with an in-wall, passive infrared (PIR) occupancy or partial-on sensor. The sensor is intended for either control of two circuits or bi-level control of two circuits, as required by certain energy codes. Passive infrared sensor with exclusive Lutron XCT Technology for minor motion detection. 180 degree sensor field-of-view. Tamper-resistant PIR lens. Up to 30 ft x 30 ft (9 m x 9 m) [900 ft2 (81 m2)] major motion coverage and 20 ft x 20 ft (6 m x 6 m) [400 ft2 (36 m2)] minor motion coverage. Smart Ambient Light Detection (ALD) mode uses adaptive algorithm: Sensor learns the user's preferred light level over time. Adjustable timeout for each circuit (1, 5, 15, or 30 minutes). Sensitivity adjustment (high/low). Switches all lighting loads: incandescent, halogen, ELV, MLV, CFL, LED, magnetic fluorescent, electronic fluorescent.
- Bi-level control of two circuits, as required by certain energy codes (e.g., ASHRAE)
- Passive infrared sensor with exclusive Lutron XCT Technology for minor motion detection
- 180 deg sensor field-of-view
- Tamper-resistant PIR lens
- Up to 30 ft x 30 ft (9 m x 9 m) [900 ft2 (81 m2)] major motion coverage and 20 ft x 20 ft (6 m x 6 m) [400 ft2 (36 m2)] minor motion coverage
- Smart Ambient Light Detection (ALD) mode uses adaptive algorithm: Sensor learns the user's preferred light level over time
- Occupancy version can be set to Auto-ON / Auto-OFF or Manual-ON / Auto-OFF
- Adjustable timeout for each circuit (1, 5, 15, or 30 minutes)
- Sensitivity adjustment (High/Low)
| Load | 6 A@120 to 277 VAC lights/4.4 A@120 VAC fan |
| Sensor | Yes |
| Sensing Range, Maximum | 900 |
| Sensing Range, Minimum | 400 |
| Operating Temperature, Maximum | 104 °F |
| Operating Temperature, Minimum | 32 °F |
| Environmental Conditions | 0 to 90% humidity, non-condensing. Indoor use only. |
| Enclosure | Plastic |
| Body | Plastic |
| Application | Lighting Control |
| Supply Voltage | 120 to 277 |
| Type | Occupancy sensor switch, dual-circuit, partial-on, single-pole |
| Standard | UL, cUL, NOM, Title 20/24 |
| Mounting | Wallbox |
