Minimum Qty
Discount
-
Buy 24+$56.19
-
Buy 48+
-
ROCK BOTTOM PRICE
- $56.05
-
ROCK BOTTOM PRICE
-
-
Buy 48+
- $56.05
-

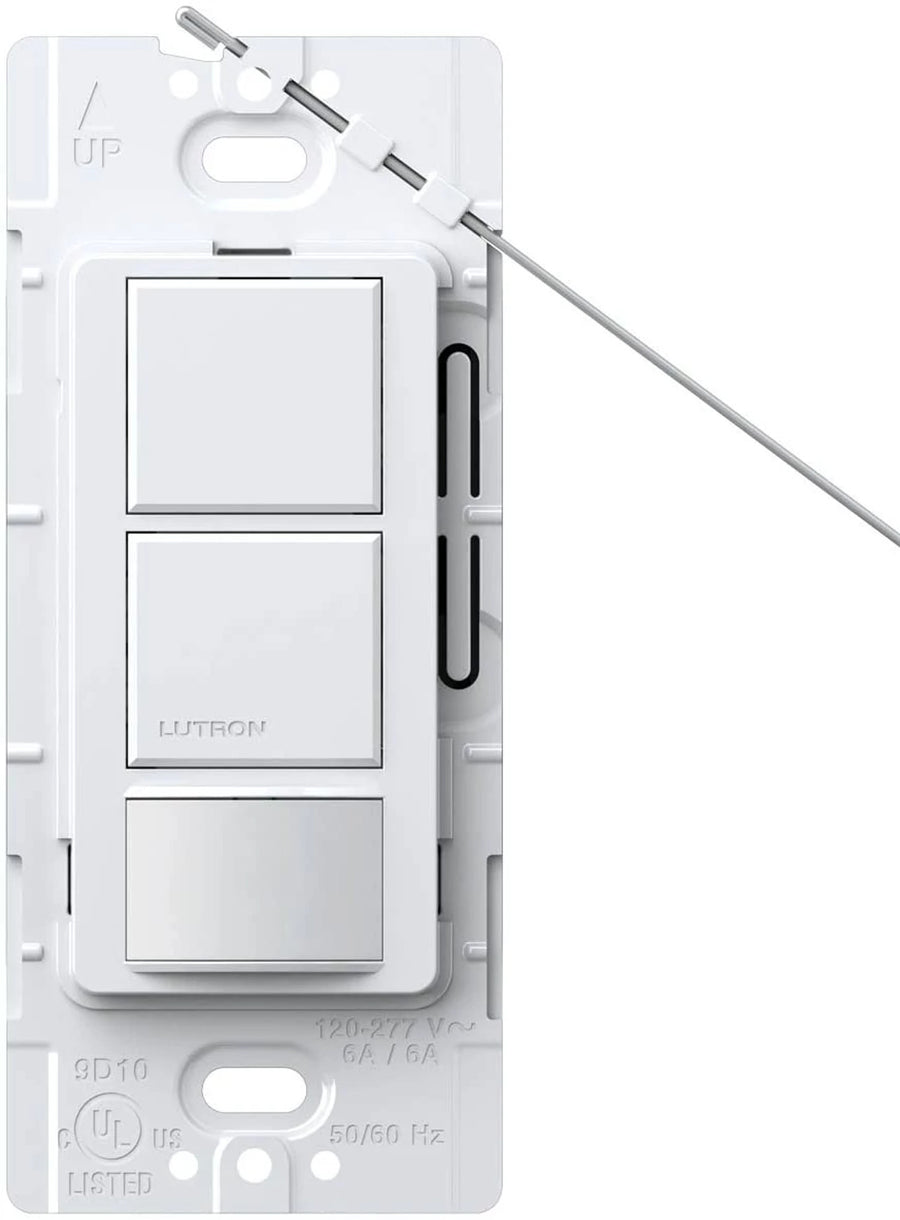

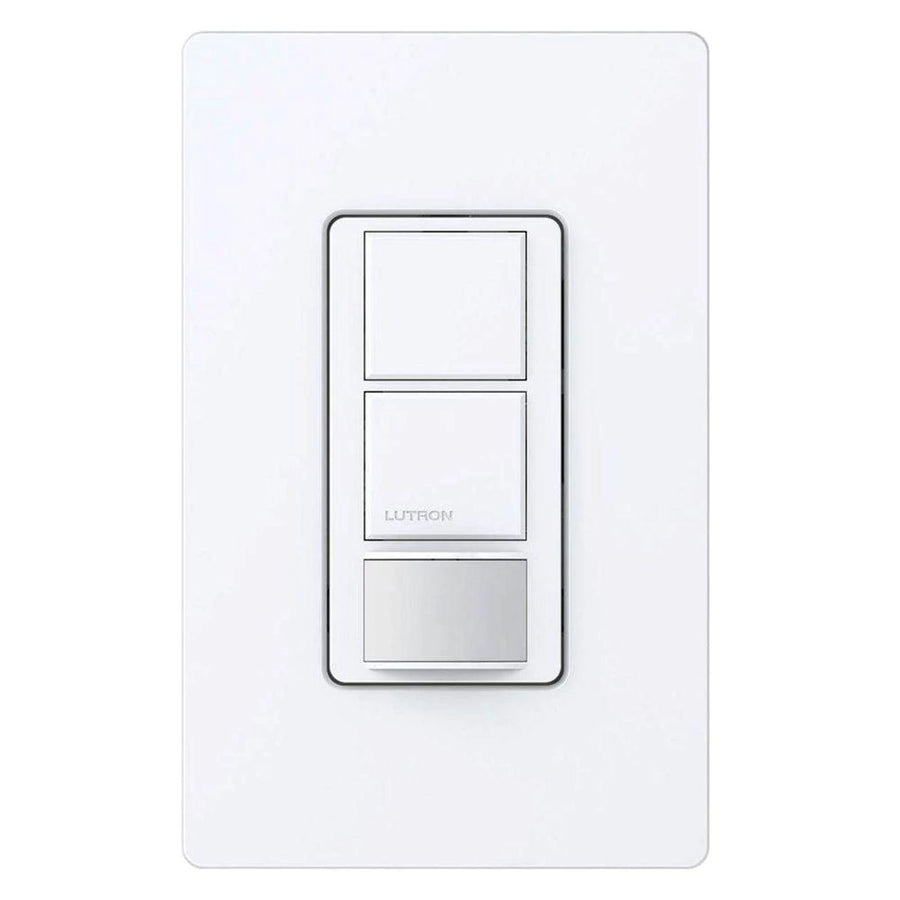

Lutron Maestro Dual Circuit Motion Sensor Switch, 6A Light/4.4A Fan, 120-277V, Dual Single Pole, Ground or Neutral Required, MS-OPS6-DDV-WH, White
- ROCK SKU: LUT-MS-OPS6-DDV-WH
- UPC: 784276066648
- MFG Part #: MS-OPS6-DDV-WH
$96.60
$56.33
Estimated Lead Time: 2-3 weeks
Product dimensions
-
Width:
2.3 IN
-
Height:
2.3 IN
-
Depth:
4.5 IN
-
Weight:
0.2 LBS
Combines two switches with an in-wall, passive infrared (PIR) occupancy or partial-on sensor. The sensor is intended for either control of two circuits or bi-level control of two circuits, as required by certain energy codes. Passive infrared sensor with exclusive Lutron XCT Technology for minor motion detection. 180 degree sensor field-of-view. Tamper-resistant PIR lens. Up to 30 ft x 30 ft (9 m x 9 m) [900 ft2 (81 m2)] major motion coverage and 20 ft x 20 ft (6 m x 6 m) [400 ft2 (36 m2)] minor motion coverage. Smart Ambient Light Detection (ALD) mode uses adaptive algorithm: Sensor learns the user's preferred light level over time. Can be set to auto-on/auto-off or manual-on/auto-off. Adjustable timeout for each circuit (1, 5, 15, or 30 minutes). Sensitivity adjustment (high/low). Switches all lighting loads: incandescent, halogen, ELV, MLV, CFL, LED, magnetic fluorescent, electronic fluorescent.
- Includes (1) Lutron Maestro Dual Circuit Motion 6A Sensor Switch; Gloss Finish
- Controls (2) individual circuits, each rated up to 6A lighting, 4.4A (1/6HP) fans motors, or 4.4A combined fan/light
- Ground or Neutral required; 120-277V
- (2) Single Pole circuits; Wire-lead installation
- Features passive infrared (PIR) motion detection with exclusive Lutron XCT Technology for fine motion detection, which is 2-3x better at picking up motion than other manufacturers
- 180-degree sensor field of view (900 sq ft major motion & 400 sq ft minor motion coverage); Tamper-resistant lens
- Smart Ambient Light Detection (ALD) can be programmed so lights stay off if enough natural light is present in the room
- Easy button programming to customize timeout, sensor mode, or sensitivity
- Complies with Title 20/24 Section 110.9 for “automatic shutoff”
- Available in 10+ colors; Pairs perfectly with Lutron Claro wall plates for consistent color matching (wall plates are sold separately)
| Body | Plastic |
| Application | Lighting Control |
| Load | 6 A@120 to 277 VAC lights/4.4 A@120 VAC fan |
| Environmental Conditions | 0 to 90% humidity, non-condensing. Indoor use only. |
| Enclosure | Plastic |
| Operating Temperature, Maximum | 104 °F |
| Operating Temperature, Minimum | 32 °F |
| Sensor | Yes |
| Sensing Range, Maximum | 900 |
| Sensing Range, Minimum | 400 |
| Supply Voltage | 120 to 277 |
| Standard | UL, cUL, NOM, Title 20/24 |
| Type | Occupancy sensor switch, dual-circuit, single-pole |
| Mounting | Wallbox |
Product dimensions
-
Width:
2.3 IN
-
Height:
2.3 IN
-
Depth:
4.5 IN
-
Weight:
0.2 LBS
